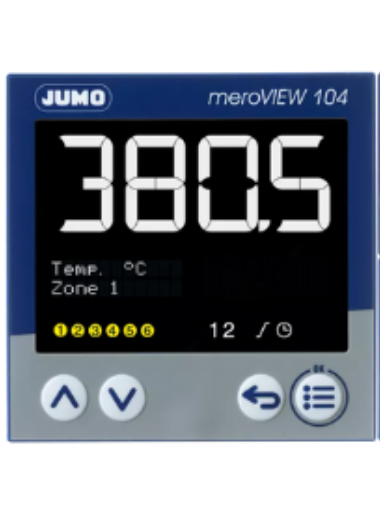

Jumo meroVIEW 104 Multifunction digital indicator with PLC function (TC: -270 ~ +2500 °C, RTD: -200 ~ +850 °C, 96 x 96 mm)

Order code: 701554/8-01-03-09-09-12-11-23/214

96 x 96 mm, 1 analog input (universal), 1 digital input, 1 digital input/output (switchable), 2 relays (NO contact), incl. 2 timers, min/max value display, hold function, taring function, setup program (download),

Measuring range:

Thermocouples: -270 to +2500 °C

RTD temperature probe: -200 to +850 °C

Version: Standard with default settings

Option 1: 1 analog input (universal)

Option 2: 3 digital inputs

Option 3: 1 analog output

Option 4: 1 analog output

Option 5: 1 Ethernet interface (Modbus TCP, setup program)

Option 6: 1 RS485 interface (Modbus RTU)

Voltage supply: AC 110 to 240 V +10/-15 %, 48 to 63 Hz

Extra codes: Math and logic module

 The multifunctional digital controller impresses with the individual design of its user interface and hardware equipment. Analog and digital inputs and outputs, counting inputs, as well as interfaces can be flexibly added to display the required process variables. The indicator masters even complex applications with math and logic functions as well as the implementation of control functions via ST code.
