Jumo MarineTemp Screw-in RTD temperature probe for marine applications (-50 ~ +200 °C)

Order code: 902850/10-380-1003-1-6-100-104/000

Operating temperature in °C: -50 to +200 °C (standard)

Measuring insert: 1× Pt100 in 2-wire circuit

Tolerance class according to DIN EN 60751: Class B (standard)

Sheath diameter D in mm: ∅ 6 mm

Fitting length EL in mm (EL 50 to 200 mm): 100 mm

Process connection: Screw connection G 1/2

Extra codes: None

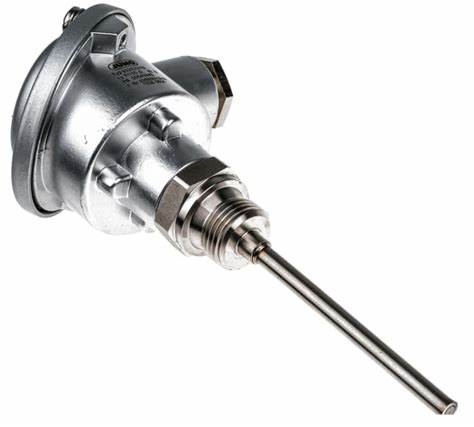

Image may be a representation. See datasheet for product details.

The screw-in RTD temperature probe is the preferred choice for measuring temperatures in liquid and gaseous media in the shipping industry.

Datasheet
