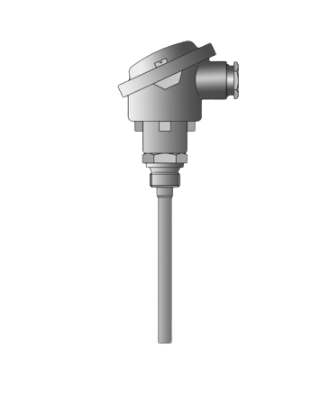

Jumo JUMO Etemp B Screw-in RTD temperature probe with connection head form B (-50 ~ +200 °C, Sales no.: 90/00543945)

Order code: 902023/10- 380-1003-1-6-100-104/000

Operating temperature in °C: -50 to +200 °C (standard)

Measuring insert: 1x Pt100 in 2-wire circuit

Tolerance class as per DIN EN 60751: Class B (standard)

Sheath diameter D in mm: ∅ 6 mm

Fitting length EL in mm: 100 mm

Process connection: Screw connection G 1/2

Extra codes: None

Screw-in RTD temperature probes for standard applications are predominantly used for temperature measurement in liquids and gases. The application areas are, among others, in air-conditioning and refrigeration technology, as well as heating construction and apparatus engineering.
