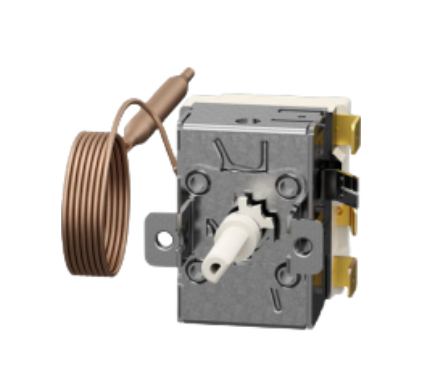

Jumo heatTHERM Panel-mounted thermostat (20 ~ 90°C, Part No.: 60003218)

Order code: 602030/01-041-000-25-2000-40-10-6-40-13-460/707

Control range: 20 to 90 °C (max. admissible probe temperature 115 °C)

Limit value (STW/STB): With adjustable control range

Switching differential: 2.5%

Capillary length: 2000 mm (standard)

Capillary material: Cu (copper, up to max. 300 °C), Ø 1.25 mm

Process connection: Plain cylindrical probe

Probe diameter: 6 mm

Probe material: Cu (copper, up to max. 200 °C)

Type of capillary protective tubing: PVC tube

Protective tubing length: 460 mm

Extra code: Temperature compensation

The product is available as temperature controller (TR), temperature monitor (TW) (type 602030), safety temperature monitor (STW), or as a safety temperature limiter (STB) (type 602031). The panel-mounted thermostat is RoHS-compliant and cadmium-free.
