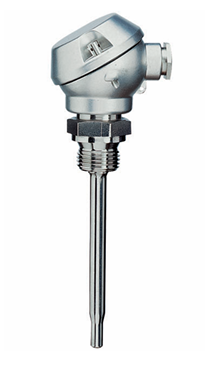

Jumo HEATtemp Screw-in RTD temperature probe (0 ~ 150°C)

Order code: 902427/10-824-1003-1-6-85-104/761

Operating temperature in °C: 0 to 150 °C

Measuring insert: 1 × Pt100 in two-wire circuit

Tolerance class according to DIN EN 60751: Class B (standard)

Protection tube diameter D in mm: Ø 6 mm (max. admissible EL = 210 mm)

Insertion length EL in mm (85 to 280 mm): 85 mm

Process connection: Screw connection G 1/2

Extra codes: Paired according to DIN EN 1434 with conformity assessment/identification marking according to MIDa (heat)

These type DL heat and cold meter RTD temperature probes are used for temperature measurement in closed pipeline systems. Direct mounting without an additional immersion sleeve is recommended to achieve optimum thermal coupling to the measurement medium in the heating system.
