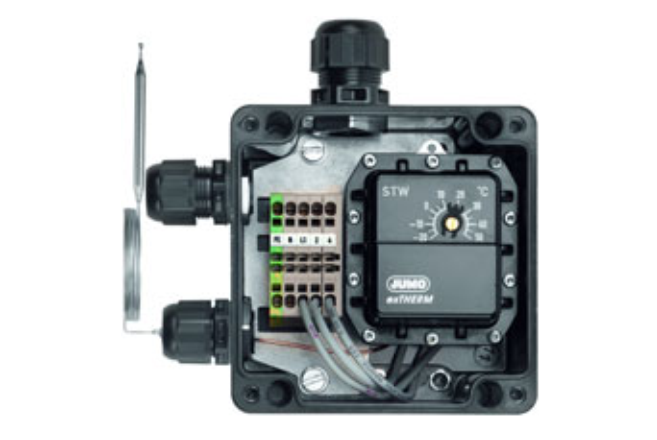

Jumo exTHERM-AT Explosion-protected surface-mounted thermostat (-20~+40 °C, Part No.: 60003366)

Order code: 605055/002-6-4-013-00-21-467-25-00-0-0-20-15-56-0-0/000

Basic type extension: Temperature monitor (TW)

Design type: Room thermostat

Housing: Polyester case black (standard)

Control range (TW): -20 to +40 °C

Limit value range (STB): Only single thermostat

Switching capacity: AC 230 V, 16 (2.5) A, cos φ = 1 (0.6)

Admissible ambient temperature at the housing: 40 to +40 °C T6 (+70 °C T4) (+55 °C T4 at 25 A)

Switching differential: Approx. 2.5 %

Switching differential 2: None

Capillary length: 0 mm

Capillary length 2: 0 mm

Capillary material: CrNi

Process connection: Spiral probe

Probe diameter: 56 mm

Probe diameter 2: Only single thermostat

Insertion length EL in mm: Only probe

Extra codes: None

The product monitors and controls temperature in potentially explosive areas. Use in environments with gas and steam is permitted (zones 1 and 2); use in environments with conductive dust (zones 21 and 22) is also permitted.
