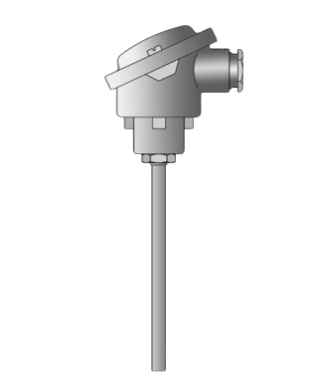

Jumo Etemp B Push-in RTD temperature probe with connection head form B (-50 ~ +200 °C, Sales no.: 90/00542850)

Order code: 902123/10-380-1003-1-6-250/000

Operating temperature in °C: -50 to +200 °C (standard)

Measuring insert: 1x Pt100 in 2-wire circuit

Tolerance class as per DIN EN 60751: Class B (standard)

Sheath diameter D in mm: ∅ 6 mm

Nominal length NL in mm: 250 mm

Extra codes: none

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. Application areas include air conditioning and refrigeration technology, heating and apparatus engineering, and process technology.

Datasheet
