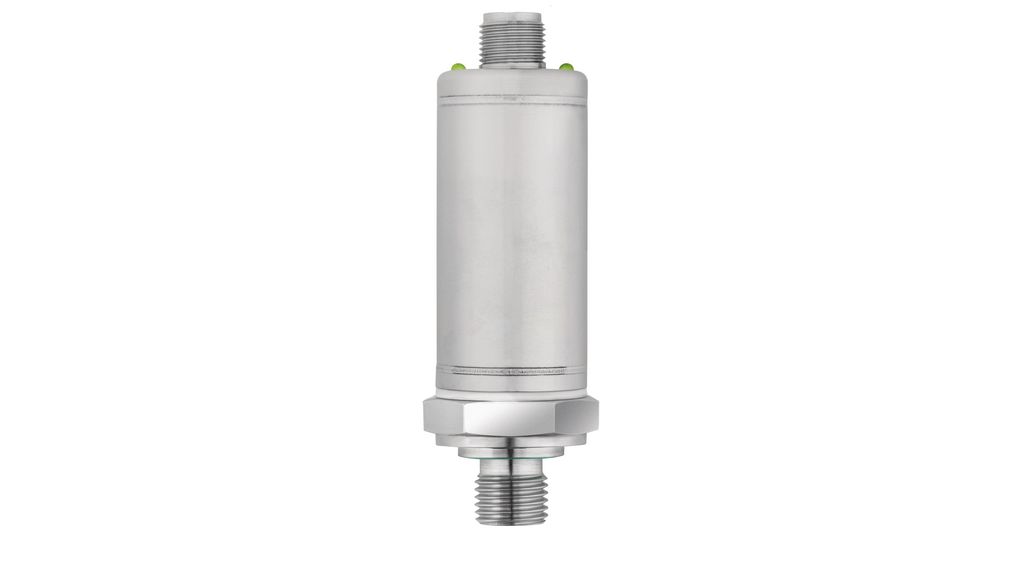

Jumo dTRANS p35 Pressure sensor with IO-Link (-1bar ~ +12bar)

Order code: 402058/000-526-458-504-20-36/061

Basic type extension: None

Input: -1 bar to +12 bar relative pressure

Output: IO-Link measured value transmission, including digital output

Process connection: G 1/2 DIN EN 837

Process connection material: Stainless steel 316L

Electrical connection: Round plug M12 × 1

Extra code: With UL approval

The pressure sensor measures relative and absolute pressure in liquids and gases. The device is equipped with an IO-Link interface according to specification 1.1. As a result, the pressure sensor is suitable for use in plant and mechanical engineering for connecting to automation systems.
