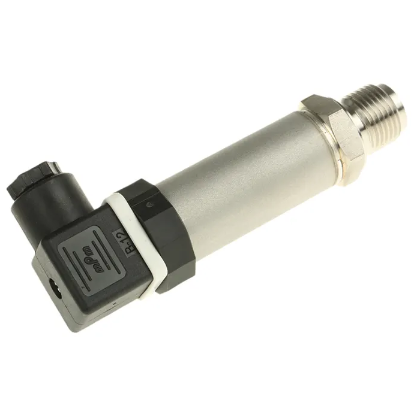

Jumo dTRANS p30 Pressure transmitter (0 ~ 0.25 bar, Part No.: 43006500)

Order code: 404366/000-451-405-504-20-61/000

Input: 0 to 0.25 bar relative pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/2 DIN EN 837

Material of process connection: CrNi (stainless steel)

Electrical connection: Cable socket DIN EN 175301-803, Form A

Extra code: None

The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.

Datasheet
