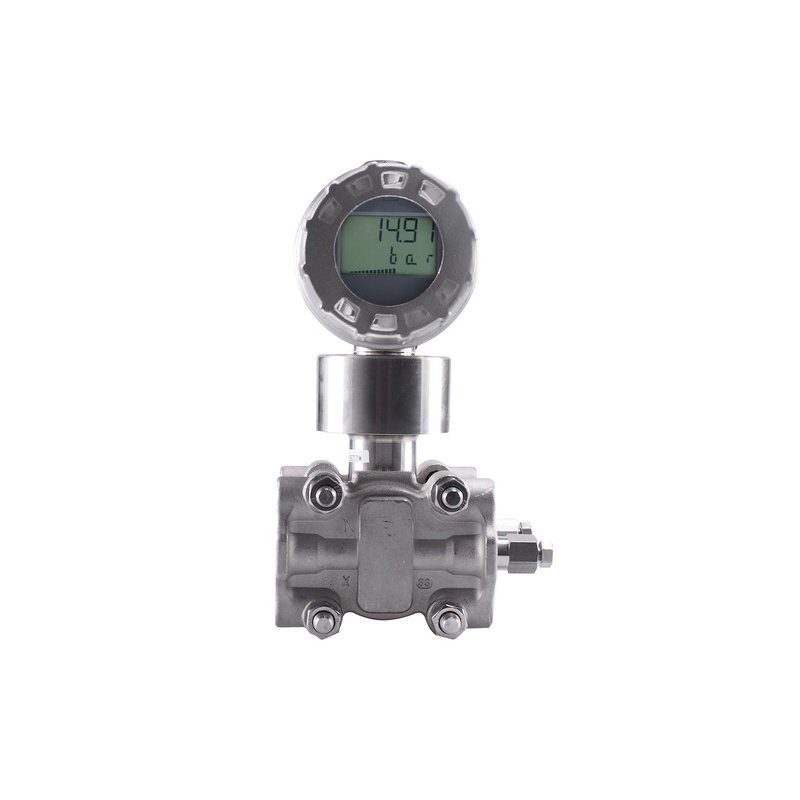

Jumo dTRANS p20 DELTA Differential pressure transmitter (-10~10 mbar DPd, Part No.: 00569267)

Order code: 403022/0-1-1-36-20-1-1-530-410-511-20-01/000

Basic type extension: None

Explosion protection: ATEX Ex iab

Housing: Short, stainless steel, with M12 connection

Electrical connection: Round plug M12 × 1

Cover material: CrNi (stainless steel)

Display: With display (LCD)

Operation: With control knob

Input – nominal measuring range: -10 to +10 mbar DPd

Output: 4 to 20 mA, two-wire with HART® protocol

Process connection: 2× pressure connection 1/4-18 NPT according to DIN EN 837

Process connection material: CrNi (stainless steel)

Measuring system, filling medium: Silicon oil

Extra codes: None

The product measures the differential pressure of gases, steam, and liquids.
