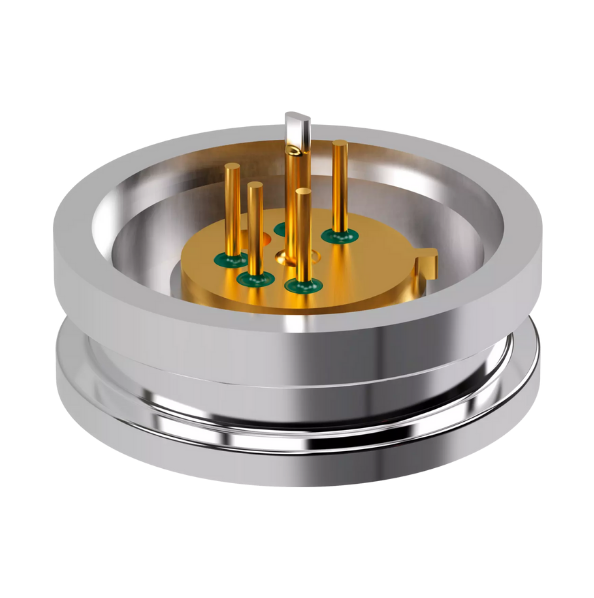

Jumo CEROS S01 M Digital pressure measuring cell (0 bar ~ 100 bar relative pressure)

Order code: 405101/000-464-210-000-52539/624

Basic type extension: None

Input: 0 bar to 100 bar relative pressure

Measuring cell: Measuring cell for welding in

Process connection: None

Output: I²C, 4-wire, 5 V supply

Electrical connection: JST connector

Extra codes: Oil and grease free

The pressure measuring cell provides a temperature compensated and calibrated digital/analog output signal. The piezoresistive sensing element with integrated signal processing is hermetically encapsulated. It ensures stable, precise linearity and accuracy values even under adverse conditions.
