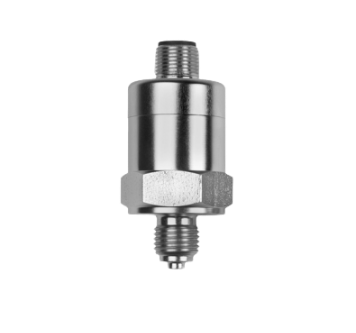

Jumo CANtrans p ceramic Pressure transmitter with CANopen output (0 ~ 40 bar relative pressure)

Order code: 402055/00-462-450-502-20-601-36/000

Input: 0 to 40 bar relative pressure

Output: CANopen

Process connections: G 1/4" according to DIN EN 837

Process connection material: CrNi (stainless steel)

Seal: FPM

Electrical connection: M12 plug connector

Extra code: None

The product acquires either the relative or absolute pressure of liquid and gaseous media. It digitizes the pressure value and makes it available for further use through the "CANopen" serial bus protocol. The pressure transmitter is used in such environments as wind power plants.
