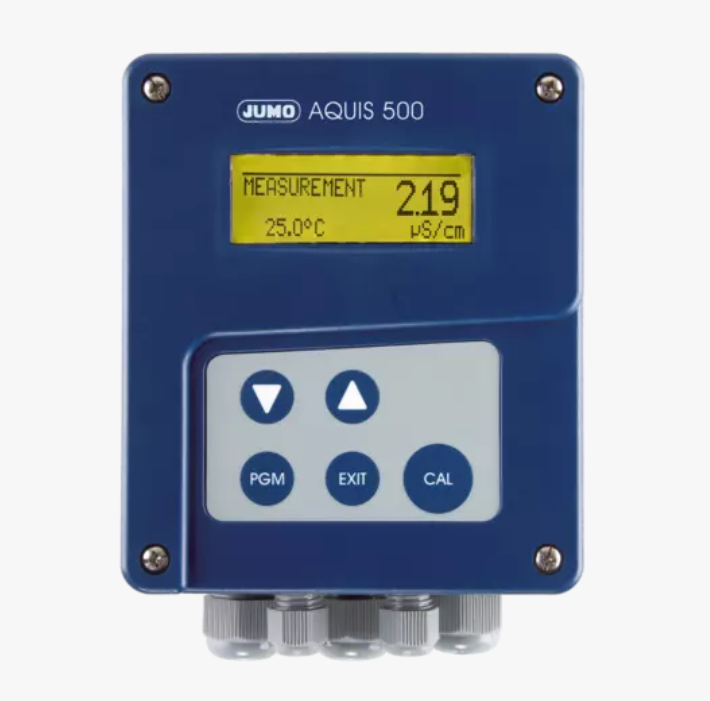

Jumo AQUIS 500 CR Transmitter and controller for conductivity (0.000~9999µS/cm, -50 ~ +250°C, Part No.: 00480055)

Order code: 202565/20-888-888-310-310-23/000

Measuring range:

Principal input: 0.000 to 9999 mS/cm

Secondary input: -50 to +250 °C

Basic type extension: in surface mountable housing

Output 1 (for principle measurement variable or continuous controller): analog output 0(4) to 20 mA or 0 to 10 V

Output 2 (for principle measurement variable or continuous controller): analog output 0(4) to 20 mA or 0 to 10 V

Output 3: relay with changeover (SPDT) contact

Output 4: relay with changeover (SPDT) contact

Power supply: AC 110 to 240 V; +10 %/-15 %, 48 to 63 Hz

Extra codes: none

The product controls the electrolytic conductivity, the specific electrical resistivity, or the TDS value.
