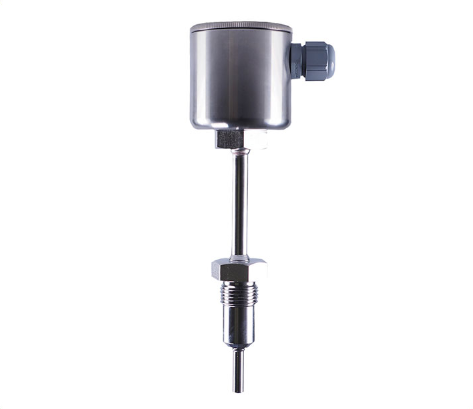

Jumo 902810 RTD temperature probe (-50 ~ +250 °C, Part No.: 00466457)

Order code: 902810/20-1001-2-6-25-380-24/452

Temp.: between -50 and +250 °C

Measuring insert: 1× Pt100 in three-wire circuit

Tolerance class according to DIN EN 60751: Class A (standard)

Protection tube diameter D in: Ø 6 mm

Insertion length EL in mm (25 to 400 mm): 25 mm

Process connection: Screw connection G 1/2 with CIP-compliant conical seal

Protection tube material: Stainless steel 316 L (material-no. 1.4404/1.4435)

Extra code: Wetted, electrolytically polished parts, surface roughness Ra ≤ 0.8 μm

The RTD temperature probes can be built with terminal heads made of either stainless steel, aluminum die-cast, or plastic. Various process connections are available for the different requirements of sub-areas in the food and pharmaceutical industry.
