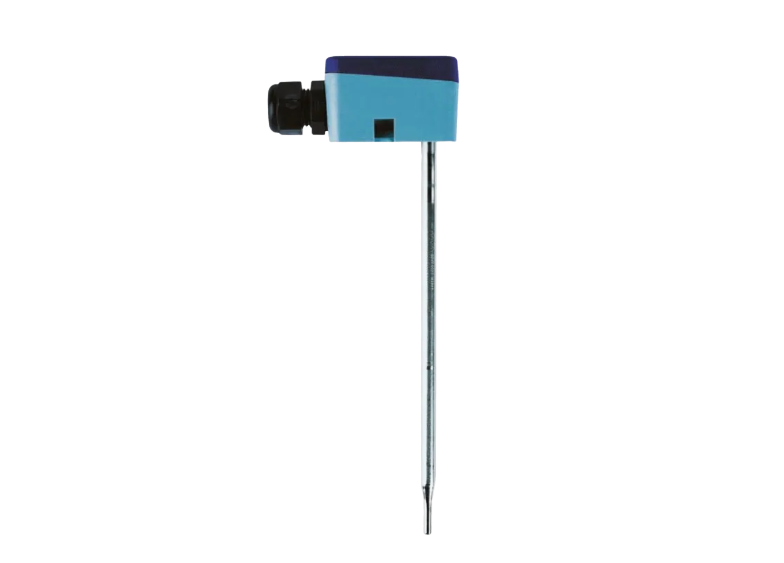

Jumo 902524 RTD temperature probes (-50 ~ +200°C, Part No.: 00410556)

Order code: 902524/25-380-1003-1-6-100-000/310,404

Operating temperature in °C: -50 to +200 °C

Measuring insert: 1× Pt100 in two-wire circuit (standard)

Tolerance class according to DIN EN 60751: Class B (standard)

Protection tube diameter D in mm: Dia. 6 mm

Nominal length NL in mm (NL 50 to 500): 100 mm

Process connection: none

Extra codes: Protection tube stepped down from dia. 6 mm to dia. 3.3 mm, protection type IP65

Channel RTD temperature probes for air conditioning technology are predominantly used for temperature measurement in air channels and outdoors.
