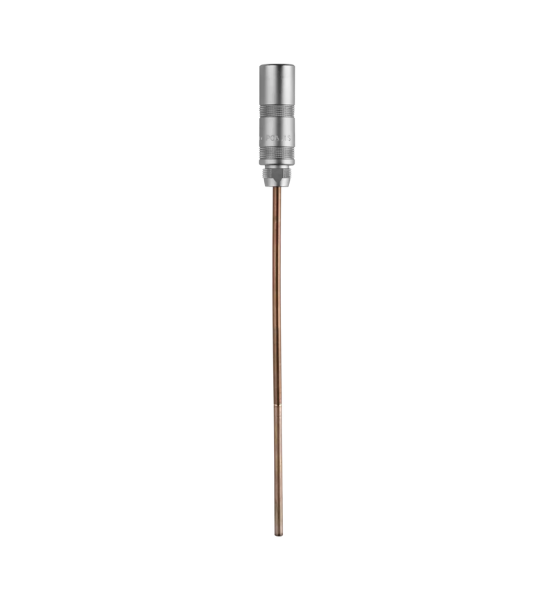

Jumo 902240 Mineral-insulated RTD temperature probe (-50 ~ +600 °C)

Order code: 902240/20-415-1001-1-6-200/000

Operating temperature in °C: -50 to +600 °C (standard)

Measuring insert: 1× Pt100 in 3-wire circuit

Tolerance class according to DIN EN 60751: Class B (standard)

Protection tube diameter D in mm: Ø 6.0 mm, for basic type 902240/20 incl. LEMO-coupling size 2

Insertion length EL in mm (at least 70 mm): 200 mm

Extra codes: None

Mineral-insulated RTD temperature probes are used in chemical plants, power plants, pipelines, and in engine manufacturing due to their flexibility and easy mounting.

Datasheet
