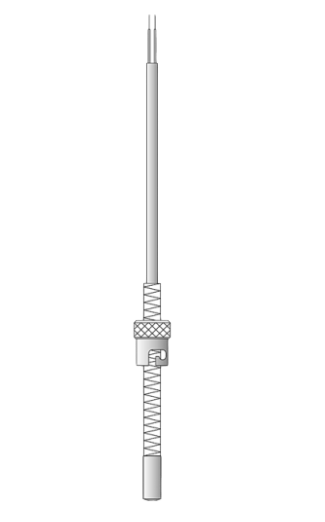

Jumo 902190 Push-in RTD temperature probe (-50 ~ +350 °C, Sales no.: 90/00055797)

Order code: 902190/10-397-1003-1-8-175-11-2500/317

Operating temperature in °C / connecting cable: -50 to +350°C/metal braiding

Measuring insert: 1 x Pt100 in 2-wire circuit

Tolerance class to EN 60 751: Class B (standard)

Sheath diameter D in mm: 8mm

Fitting length EL in mm: 20 - 175mm

Connecting cable end: ferrules to DIN 46 228 Part 4 (standard)

Connecting cable length AL in mm (500≤ AL ≤500000): 2500mm

Extra codes: shielded connecting cable

The special shape of the probe tip makes these temperature probes suitable for use in flat and pointed drilled holes. They are predominantly used for temperature measurements in solid bodies, friction bearings, and tools (e.g. in the plastics industry).

Datasheet
