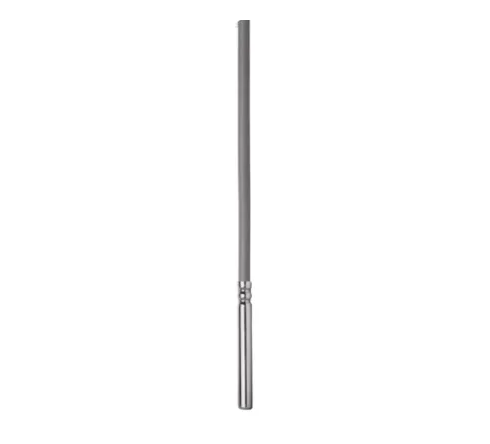

Jumo 902153 Push-in RTD temperature probe (-50~+180°C/ Silicone, Part No.: 00376393)

Order code: 902153/10-378-1005-1-6-50-11-1500/000

Operating temperature range in °C / cable type: -50 to +180 °C (short-term +250 °C) / Silicone

Measuring insert: 1× Pt 1000 in 2-wire circuit (standard)

Tolerance class according to DIN EN 60751: Class B (standard)

Sheath diameter D in mm: Ø 6 mm (standard)

Fitting length EL in mm: 50 mm (standard with sheath diameter 6 mm)

Cable termination: Ferrules according to DIN 46228 Part 4 (standard)

Cable length AL in mm (500 to 20000): 1500 mm (standard with silicone connection cable)

Extra codes: none

The push-in RTD temperature probes have been especially developed for the requirements of temperature measurement in solar thermal plants. They are used in collectors and accumulators of solar thermal plants.
