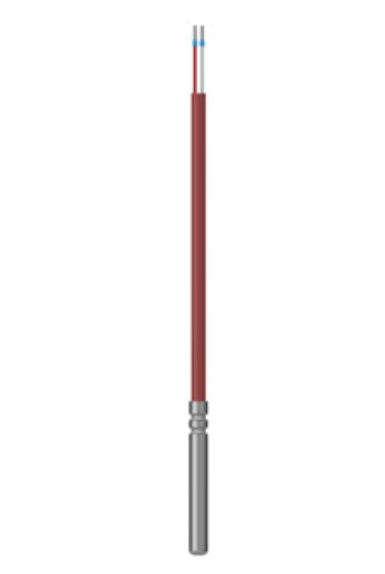

Jumo 902150 Push-in RTD temperature probe with connection line (-5 ~ +80 °C, Part No.: 30056168)

Order code: 902150/10-724-1003-1-6-50-11-2500/000

Operating temperature: -5 to +80 °C

Measuring insert: 1× Pt100 in 2-wire circuit

Tolerance class according to DIN EN IEC 60751: Class B (standard)

Protection tube diameter D: Ø 6 mm

Insertion length EL: 50 mm

Connection line end: Ferrules (standard)

Connection line length AL: 2500 mm

Extra codes: None

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. Application areas include the air-conditioning and refrigeration industry, laboratory technology as well as heating, furnace, and apparatus engineering.
