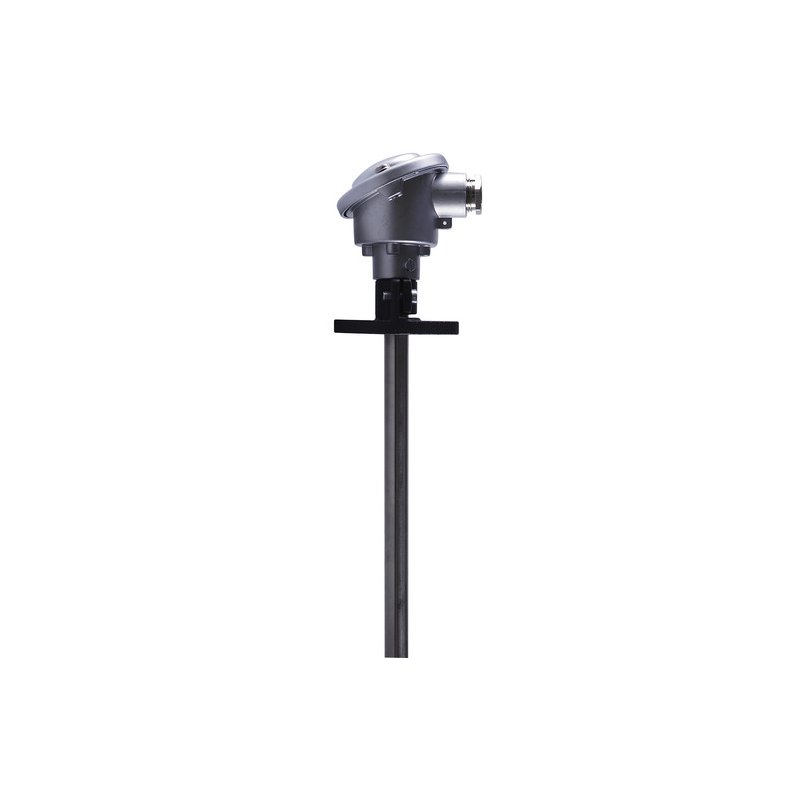

Jumo 902120 Push-in RTD temperature probe (-50 ~ +600 °C, Sales No.: 90/00055514)

Order code: 902120/10-415-1003-1-15-500-668/000

Operating temperature in °C: -50 to +600 °C

Measuring insert: 1x Pt100 in 2-wire circuit

Tolerance class as per DIN EN 60751: Class B (standard)

Sheath diameter D in mm: Ø 15 mm

Nominal length NL in mm (100≤ΝΛ£1000): 500 mm, fitting length (EL) 100 to 460 mm

Process connection: Stop flange Ø 15 mm, DIN 43734

Extra codes: no extra code

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases.

Datasheet
