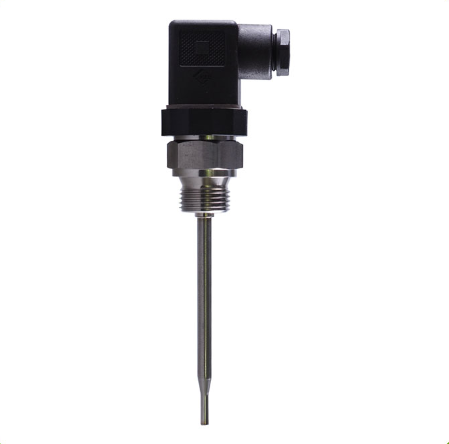

Jumo 902044 Screw-in RTD temperature probe (-50 ~ +200 °C, Part No.: 00600899)

Order code: 902044/15-380-1003-1-6-100-104-26/000

Operating temperature in °C: -50 to +200 °C

Measuring insert: 1× Pt100 in two-wire circuit (standard)

Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008: Class B (standard)

Protection tube diameter D in mm: Ø 6 mm, stepped down to Ø 3.5 mm

Insertion length EL in mm (50 to 800 mm): 100 mm

Process connection: Screw connection G 1/2

Protection tube material: Stainless steel 1.4571

Extra codes: None

Vibration-resistant screw-in RTD temperature probes allow temperatures to be measured under pressure in engines and compressors as well as in plant engineering and shipbuilding.

Datasheet
