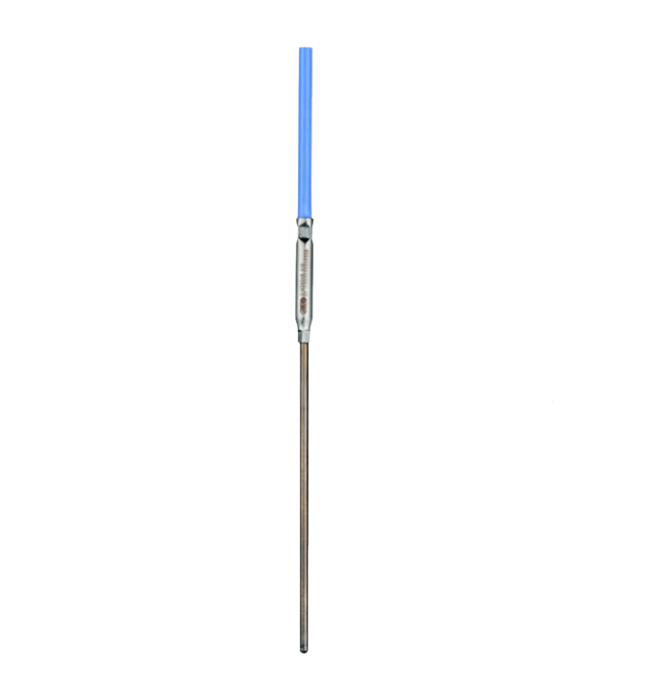

Jumo 901250 Mineral-insulated thermocouples (-200~+800 °C, Part No.: 00056809)

Order code: 901250/32-1042-3-100-11-2500/000

Measuring insert / operating temperature in °C: 1× Fe-CuNi "L", operating temperature -200 to +800 °C, sheath material no. 1.4541

Protection tube diameter D in mm: Ø 3 mm

Insertion length EL in mm (50 to 50000 mm): 100 mm

Compensating cable end: Ferrules according to DIN 46228 part 4 (standard)

Compensating cable length AL in mm (500 to 500000 mm): 2500 mm (standard)

Extra codes: Without

Due to their specific features, mineral-insulated thermocouples are used in chemical plants, power plants, pipelines, engine building, and test rigs. Inside the flexible and thin-walled sheathed cable, the thermowires are embedded in compressed and fire-resistant magnesium oxide.
