Jumo 901240 Mineral-insulated thermocouples (-200 ~ +800 °C)

Order code: 901240/20-1040-1-100/000

Measuring insert / operating temperature in °C: 1040 1× Fe-CuNi "J", operating temperature -200 to +800 °C, sheath material no. 1.4541

Protection tube diameter D in mm: Ø 1 mm

Insertion length EL in mm (50 to 50000 mm): 100 mm

Extra codes: Without

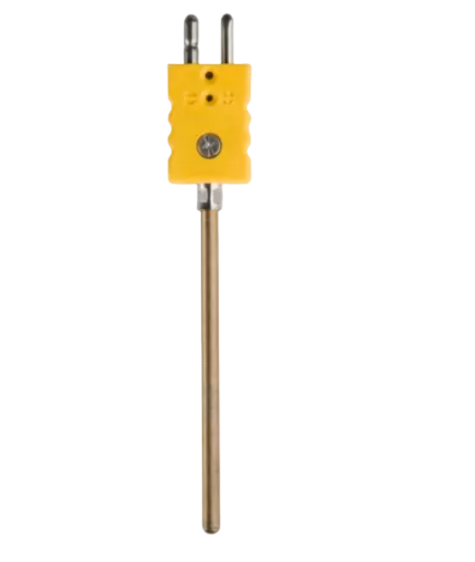

Image may be a representation. See datasheet for product details.

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.
