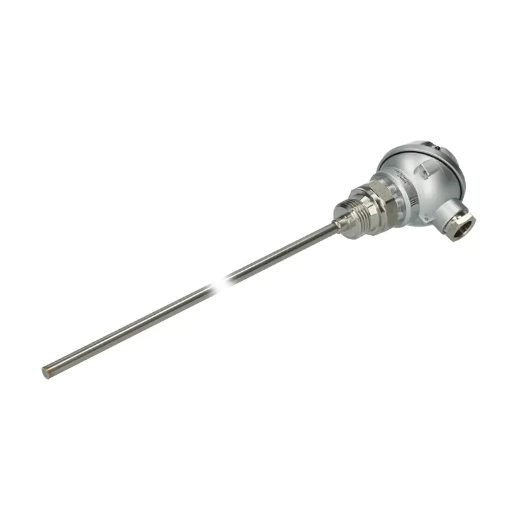

Jumo 901230 Mineral-insulated thermocouples (1× NiCr-Ni "K", -200 ~ +1200 °C, Part No.: 00068430)

Order code: 901230/40-1043-6-200-104/000

Measuring insert / operating temperature in °C: 1× NiCr-Ni "K", operating temperature -200 to +1200 °C, sheath material no. 2.4816

Protection tube diameter D in mm: 6 mm

Insertion length EL/NL in mm (50 to 50000 mm): 200 mm

Process connection: Screw connection G 1/2

Extra codes: Without

Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.

Datasheet
