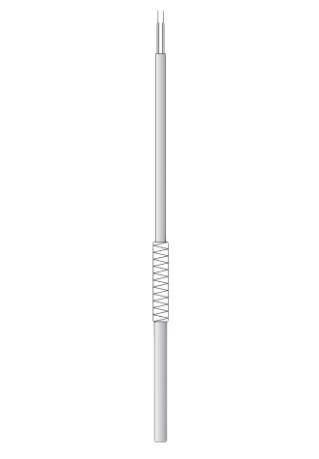

Jumo 901150 Screw-in thermocouples (0~400 °C/metal braiding, Part No.: 00055455)

Order code: 901150/10-848-1042-6-50-11-2500/315

Operating temperature in °C/compensating cable: 0 to 400 °C/metal braiding

Measuring insert: 1× Fe-Con L

Thermowell diameter D in mm: 6 mm

Fitting length EL in mm (EL 40 ... 500 mm for basic type 901150/10): 50 mm

Compensating cable end: ferrules (standard)

Compensating cable length AL in mm (AL 500 ... 500000 mm): 2500 mm

Extra codes: cable protector: coil

Push-in thermocouples are predominantly used for temperature measurement in solid bodies (e.g. heating plates and sealing jaws).
