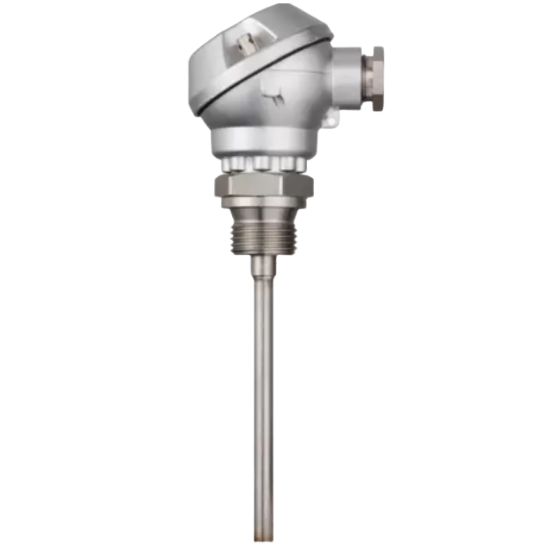

Jumo 901030 Screw-in thermocouples (-200~+600 °C, Part No.: 90/00407109)

Order code: 901030/10-150-1042-6-100-104/000

Operating temperature in °C: -200 to +600°C

Measuring insert: 1 x Fe-CuNi „L“

Protection tube diameter D in mm: Ø 6mm

Fitting length EL in mm (50 ≤ EL ≤ 600, EL ≥ 150 for basic type 901030/20): 100 mm

Process connection: Screw connection (thread) G 1/2

Extra codes: None

Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
