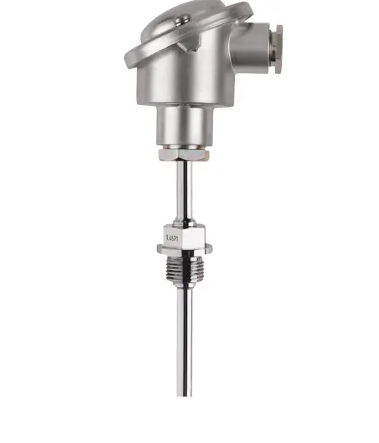

Jumo 901020 Screw-in thermocouples (-200 ~ +600 °C)

Order code: 901020/10-150-1042-9-250-104/000

Operating temperature in °C: -200 to +600 °C

Measuring insert: 1x Fe-CuNi "L“

Sheath diameter D in mm: Ø 9 mm

Fitting length EL in mm (100 ≤EL≤ 1000): 250 mm

Process connection: Screw-connection G 1/2

Extra codes: no extra code

Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
