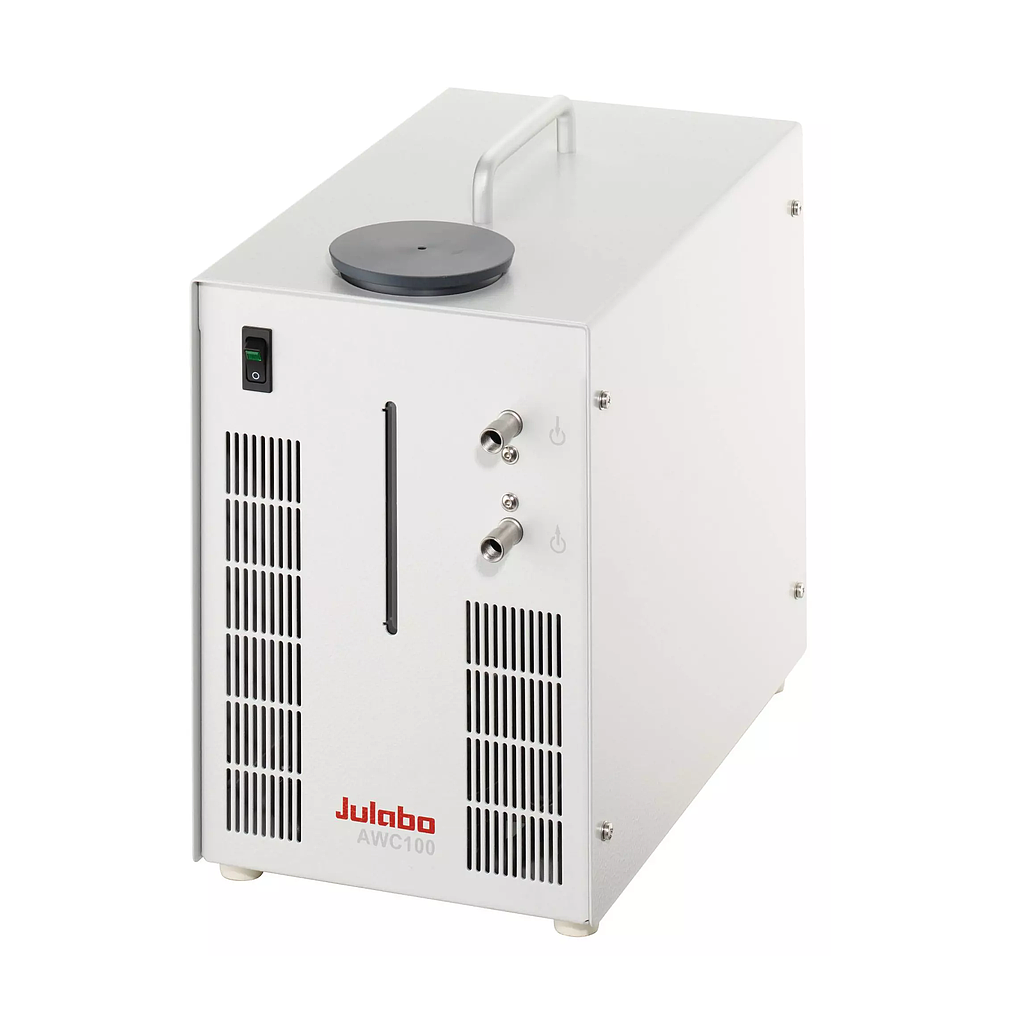

Julabo AWC100 Air-to-Water recirculating cooler (+20 ... +40 °C; 0.9L)

Dimensions and volumes:

Dimensions (W × L × H): 7.9 x 13.4 x 11.8 in.

Filling volume: 0.9 l

Weight: 21.4 lbs

Pump connections: M10x1

Barbed fittings inner diameter: 8/10 mm

Temperature values:

Working temperature range: +20 ... +40 °C

Ambient temperature: +5 ... +35 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Cooling capacity: 0.55kW

Pump capacity flow pressure: 3.5 l/min

Circulation capacity pressure: 7.1 psi

Power consumption: 0.3 A

Cooling:

Cooling of compressor: Air
