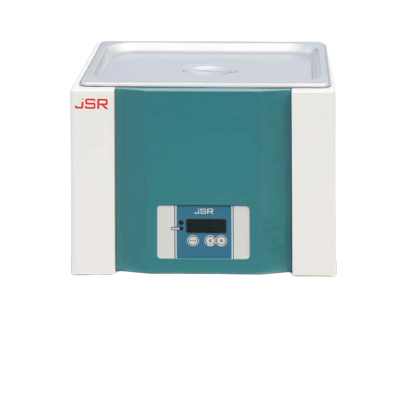

JSR JSWB-11T Heated Digital Water Bath

Heating: Direct Immersion Sheath Heater

Temp. Range: ambient + 5°C ~ 99°C

Accuracy: ± 0.2°C at 37.0°C

Uniformity: ± 0.8°C at 37.0°C

Control: Microprocessor PID Control Auto START / STOP Timer

Sensor: Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Bath – Electro-polished Seamless Stainless Steel 304

Heater Cover – Perforated Stainless Steel 304

Electric: 220±10% VAC 50/60Hz 1-Phase

Plug config.: CEE 7/7 Schuko or BS 1363

Chamber Volume (Capacity): 11 L

Dimensions (W x D x H mm )

Inner: 300 x 240 x 150

Usable: 300 x 240 x 110

Outer: 240 x 285 x 270

Drain Valve: none

Heater Capacity: 1.0 kW

Power Rating: 4.6 Amp

Power Plug: CEE 7/7 Schuko European Standard or BS 1363 British Plug
