Class: Class II Type A2
Air Flow: Vertical Laminar Flow ; 70 % Recirculation 30 % Exhaust
Filtration
Aluminum Frame Mini-Pleated HEPA
Optional ULPA Filter
Efficiency
HEPA : 99.993% for 0.3 um particle removal
[OPTION] ULPA : 99.999% for 0.12 um particles removal
Controller
Microprocessor Control: 9 Step Air Velocity Control
Material
Work Platform : Stainless Steel 304
Body : Epoxy Powder Coated Steel
Sterilization: 253nm Germicidal UV Lamp with Timer
Utility: Power Receptacles, Gas and air supply cock
Safety: Over Current Cut-Off
Electric: 220±10% VAC 50/60Hz 1-Phase
Plug config.CEE 7/7 Schuko or BS-1363
Working Width: 1205 mm(4 ft)
Dimensions (W x D x H mm)
Inner:1205x526x585
Outer: 1275x792x1990
HEAP Filter: 0.3 um particle removal 99.993 % ~ 99.995 %
ULPA Filter: Option 0.12 um particle removal 99.999 %
Air Circulation: 70 % Recirculation / 30 % Exhaust
Controller
Display: Back Light Digital LCD
Speed Control: 9 Step Air Velocity Control from 0.3 m/sec. ~ 0.6 m/sec.
Control: FL Lamp, UV Lamp, Blower ON/OFF, UV Timer,Total Using Timer, Filter Replace
Working Lamp: FL 30 W x 2 ea
Germicidal UV Lamp: UV 30 W x 1 ea
Utility: 2 x Power Consent, 1 x Gas Cock, 1 x Air Cock
Electric Requirement: 220VAC 50/60Hz 1P
Power Rating: 1.6 Amp
Power Plug: CEE 7/7 Schuko or BS-1363
Standard Delivery:

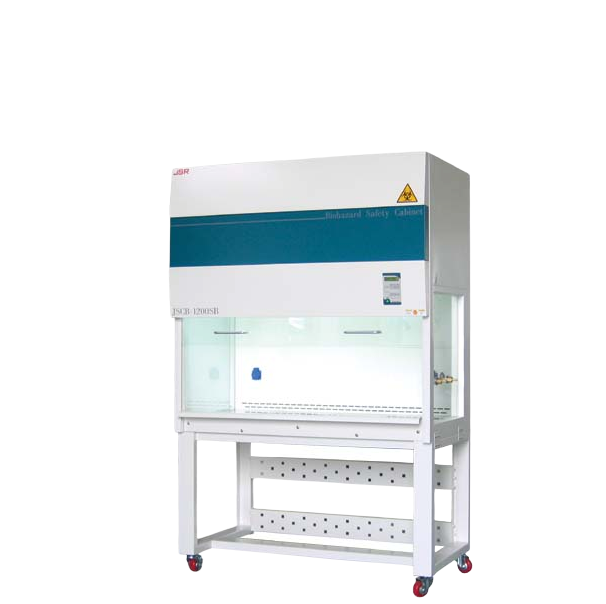

- Main Instrument model JSCB-1200SB: 01 unit
- Fluorescent lamp: 02 pc
- UV light: 01 unit
- Brackets, 4 wheels: 01
- Electric socket: 02 pcs
- 02 lead valves mounted on the body of the cabinet
