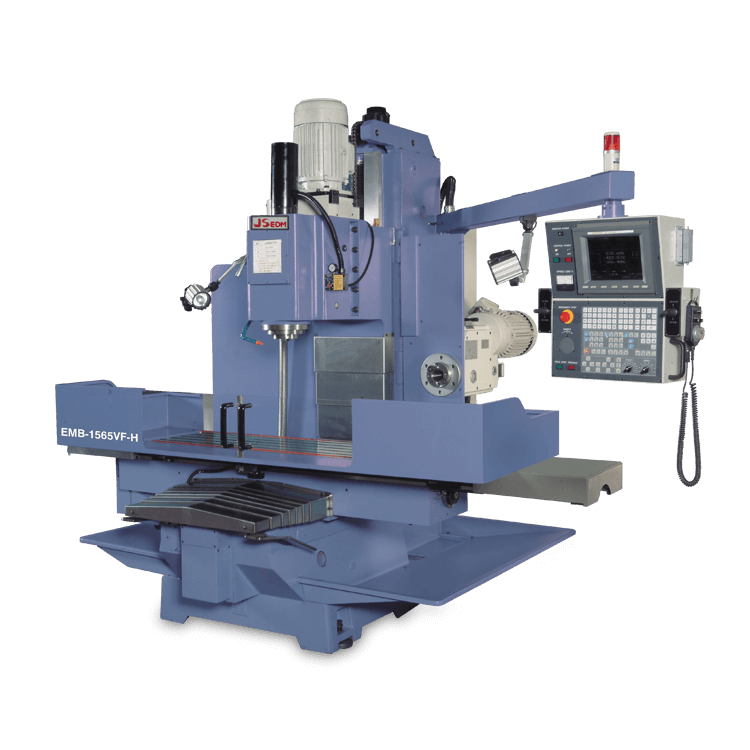

JSEDM EMB-1565 CNC Milling (5~15 HP)

Longitudinal - X axis: 1500 mm

Rapid Traverse Rate: 10000 mm/min

Cross- Y axis: 650 mm

Ball Screw: Ø40mm x 10P x C5 mm

Vertical - Z axis: 600 / 700, 800(Opt.) mm

Spindle Motor:

- 5 HP / 7.5 HP + inverter(BH)

- 10 HP / 15 HP + inverter(VF)

- 10 HP / 2P + 4P (G)

Table size: 1900 x 510 mm

X, Y, Z axis Servo Motor: 1.3 / 2 (Opt.) kw

T-slot: 18 x #5 mm

Coolant Pump Motor: 1/4 HP

Max. loading capacity: 1300 kgs

Semi Splash Safety Guard: Yes

Milling Head type: BH / VF / G

Full Splash Guard: No

Spindle Taper:

- NT#40 / BT#40(BH)

- NT#50 / BT #50(VF/G)

Floor Clothed Curtain Splash Guard: Yes (Opt.)

Spindle Speed:

- 60-4000 (BL / BH)

- 3-step 60-3000(VF) / 6-step / 12-kinds 125-1100 rpm (G)

Machine Overall Height: 2580 / 2680, 2780(Opt.) mm

Spindle Quill Rate: 127 / 150(Opt.)(BL) / 140(BH) mm

Machine Floor Space: 4400 x 3300 mm

Swivel: Left & Right ±45°(BL/BH)

Machine Net Weight: 5200 kgs

Feed Rate: 1-5000 mm/min

Controller: FANUC / MITSUBISHI/ FAGOR / SYNTEC
