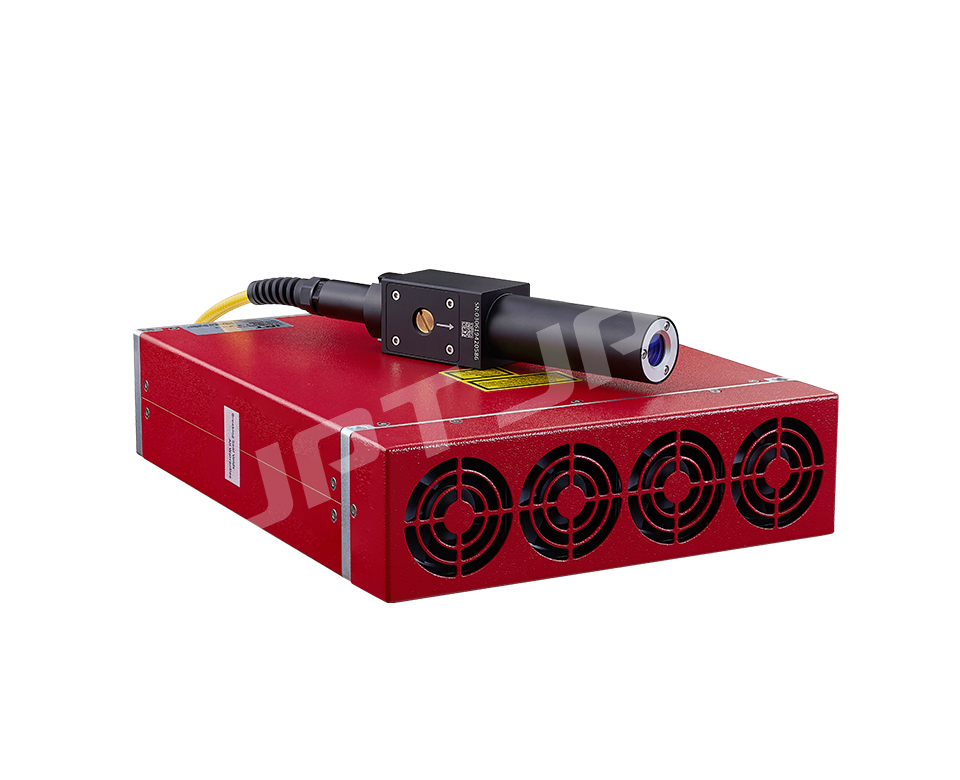

JPT YDFLP-E-50-LP-L-R Mopa Fiber Laser (>50W/ 1.25mJ/ 1-600kHz)

Application

Scribing, Drilling

Marking on fly

Sheet metal cutting, Welding

Laser derusting

Surface treatment

Metal surface processing, Peeling coating

Specification

M²: <1.8

Armored Cable Length (m): 3

Nominal Average Output Power (W): >50

Maximum Pulse Energy (mJ): 1.25

Pulse Repetition Rate Range (kHz): 1 ~ 600

Pulse Duration (ns): 200

Output Power Stability (%): <5

Cooling Method: Air Cooled

Supply DC Voltage (VDC) (V): 24

Maximum Power Consumption (W): <220

Environmental Supply Current (A): >10

Central Emission Wavelength (nm): 1064

Emission Bandwidth @3dB (nm): <15

Polarization Orientation: Random

Anti-high Reflection: Yes

Output Beam Diameter (mm): 7±0.5

Output Power Tuning Range (%): 0 ~ 100

Operation Temperature (℃): 0 ~ 40

Storage Temperature (℃): -10 ~ 60

Net Weight: 8.2 kg

Size(L×W×H): 325 x 260 x 75 mm

JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and show excellent laser performance as well as high level of temporal pulse shaping controllability. Compared with Q-switching technology, LP series has greater flexibility，wider frequency range, higher control precision and superior first pulse.
