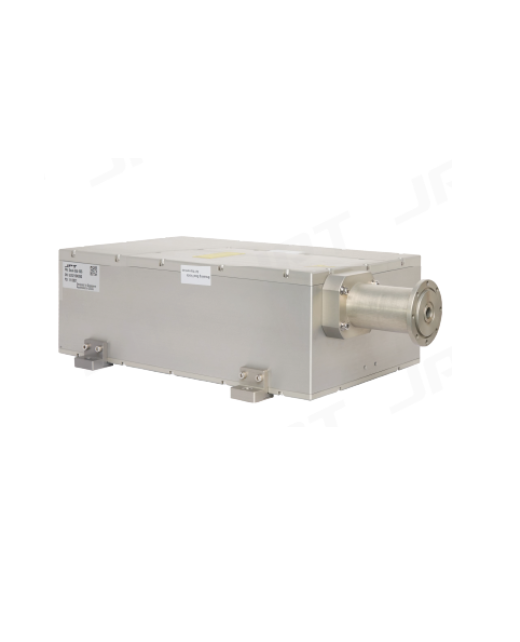

JPT SEAL-355-15S DPSS Laser (355 nm, >15W@60kHz)

Application

Photoelectric integration, Anti-interference, One-button start

Compact size, saving installation space

Air self-purification system

Fully sealed structure, without fear of high temperature, high humidity environment

Specification

Wavelength: 355 nm

Average power: >15W@60kHz

Pulse duration: <20ns@60kHz

Frequency Range: 40kHz-300kHz

Spatial mode: TEM00

Beam quality: M² ≤ 1.2

Beam circularity: >90%

Beam full divergence angle: ≤2mrad

Beam diameter: 0.55 ± 0.15mm

Polarization ratio: > 100:1

Polarization orientation: horizontal

Average power stability: RMS ≤ 3% @ 24hrs

Pulse to pulse energy stability: RMS≤3%@80kHz

Operating temperature: 0~40℃

Storage temperature: -15~50℃

Cooling method: water-cooled

Supply voltage: DC 36V

Cooling Capacity Requirement: 1000W

Dimension (W x D x H): 325 × 180 × 114mm

Weight: 9.8 kg
