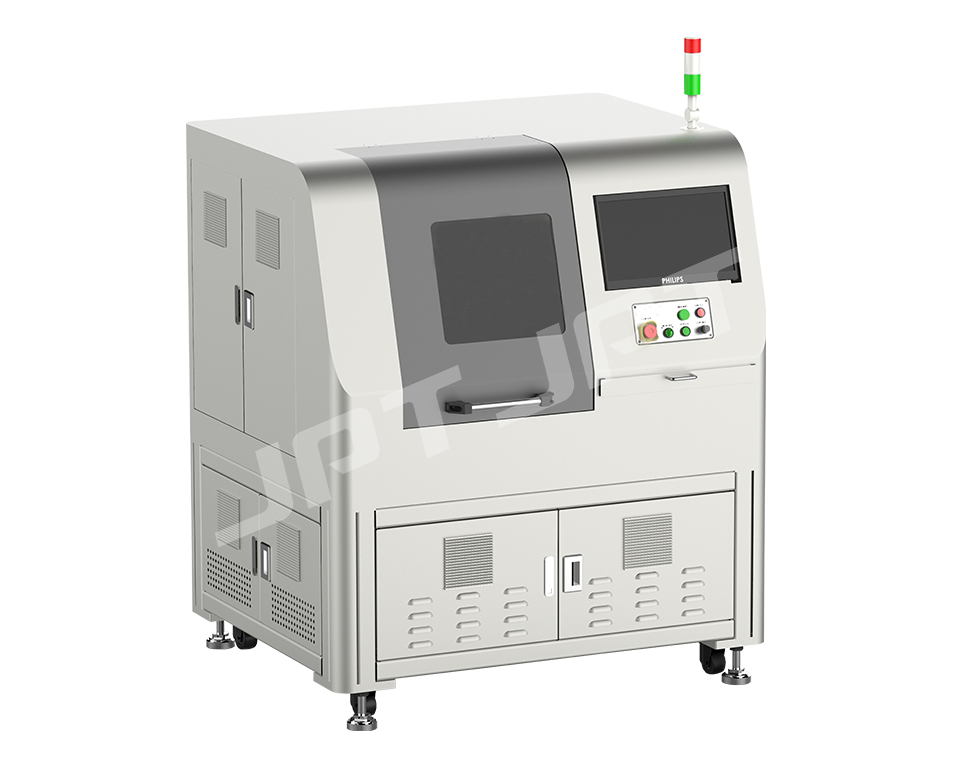

JPT S-008-S1-PF01 Laser Scriber (80±5μm)

Substrate type: 01005 and above

Scribe line depth: 80±5μm (0201 Substrates)

Min line width: 20μm

Repeatability: ±0.5μm

Absolute accuracy: ±1μm

Straightness: ±0.75μm/70mm

Max speed: 550mm/s(line module)

Dimensions: 1380×1130×1600mm^3

The laser scriber is applied to the scribing of various types of chip resistor ceramic substrates, including infrared and ultraviolet models. The device uses a laser with customized model parameters emits an extremely fine laser beam at adequate energy density. The beam goes through an optical beam shaping process and is then expanded, filtered and focused before hiting the ceramic substrate. This vaporizes the part of the substrate that is hit by the beam, forming scribe lines on the surface.
