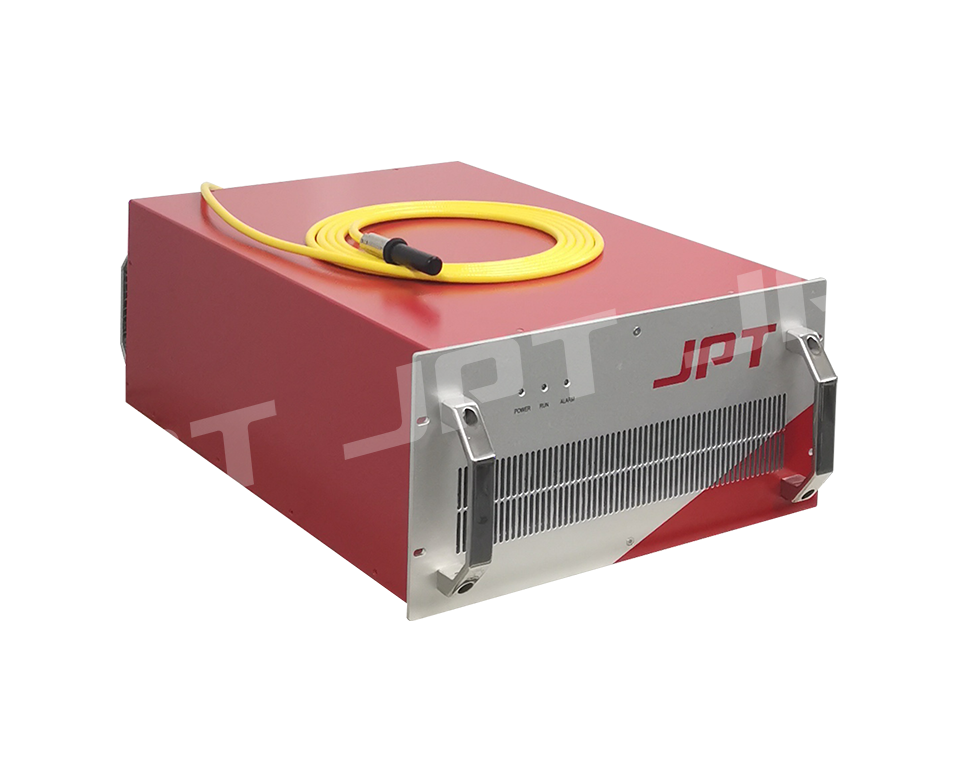

JPT QCW 300W/3000W CW Fiber Laser (1080nm/ 3000W/ 30J)

Application

Laser cutting

Laser welding

3D printing

Precision drilling

Other applications

Specification

Nominal Average Output Power (W): CW: 400; QCM: 300

Maximum peak power (W): 3000

Maximum pulse energy: 30J

Repeated frequency (kHz): 0.001 ~ 10 (Rated Output Power)

Pulse Width (ms): 0.01 ~ 10 (Rated Output Power)

Beam parameter product (mm*mrad): ≤0.55 @25um

Central Emission Wavelength (nm): 1080

Spectral Width @3dB (nm): <4

Armored Cable Length (m): 5

Cooling method: air cooled

Operating voltage (V): 48 (DC)

Switch on/off time (us): <20

Operation Temperature (℃): 10 ~ 40

Storage temperature (℃): -20 ~ 50

Net weight: 65 kg

Size (W x D x H): 483×648×234 mm

JPT QCW fiber laser is the optimal combination of optical, mechanical, electrical and software components. Through the controlling ports and the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and data can be collected. The laser uses air-cooling and shelf case design, with competitive advantage like high energy conversion (electric to light), low power consumption, maintenance free, fiber delivery, and easy move, it is the best option laser source for welding, cutting and other applications.
