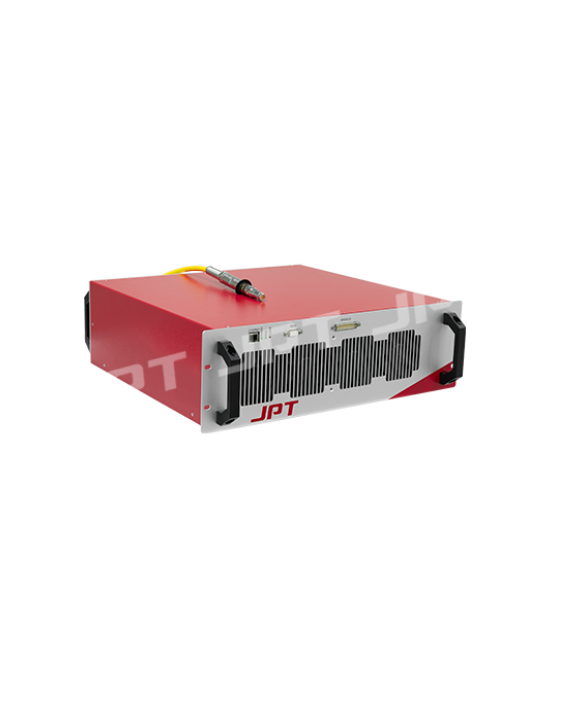

JPT QCW 150W/1500W CW Fiber Laser (1080nm/ 1500W/ 15J)

Application

Laser cutting

Laser welding

3D printing

Precision drilling

Other applications

Specification

Nominal Average Output Power (W): 150

Maximum peak power (W): 1500

Maximum pulse energy: 15J

Repeated frequency (kHz): 0.001 ~ 10 (Rated Output Power)

Pulse Width (ms): 0.01 ~ 10 (Rated Output Power)

Beam parameter product (mm*mrad): ≤2@50μm

Central Emission Wavelength (nm): 1080

Spectral Width @3dB (nm): <4

Armored Cable Length (m): 5

Cooling method: air cooled

Operating voltage (V): Single-phase 220(AC)±10%

Switch on/off time (us): <20

Operation Temperature (℃): 10 ~ 40

Storage temperature (℃): -20 ~ 50

Net weight: 52 kg

Size (W x D x H): 483×752×177 mm
