JPT CW 200W CW Fiber Laser (1080nm/ 750W/ 20kHz)

Application

Laser cutting

Laser welding

3D printing

Precision drilling

Other applications

Specification

Nominal Average Output Power (W): 200

Beam Parameter Product (mm*mrad): ≤1.5@50μm

Central Emission Wavelength (nm): 1080

Spectral Width @3dB (nm): <6

Armored Cable Length (m): 5

Cooling method: air cooled

Operating voltage (V): Single-phase 220 (AC)±10%

Maximum power consumption (W): 750

Switch on/off time (us): 20

Maximum modulation frequency (kHz): 20

Operation Temperature (℃): 10 ~ 40

Storage temperature (℃): -20 ~ 50

Net weight: 28.5 kg

Size (W x D x H): 483 x 484 x 133 mm

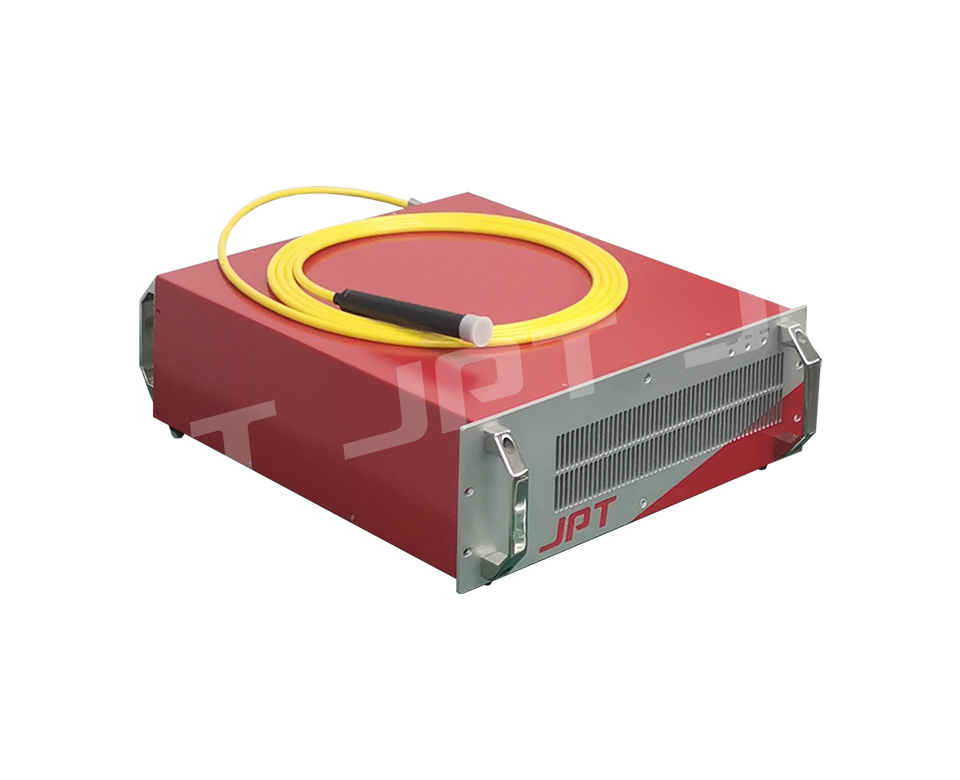

JPT CW laser 200W/300W is diode pumped single mode fiber laser source, Through the controlling software, the operating status of the laser can be monitored in real time, alarm messages can be received in time, and operation data can be collected. The laser uses air-cooling and compact design, with competitive advantage like high energy conversion (electric to light), maintenance free and fiber delivery, be easily integrated to machine. With the most reasonable design in light path, the laser has very good beam quality (m2 close to 1), users can get higher processing accuracy. JPTCW-SM-K series laser is the best option for high precision industrial laser cutting, welding and other applications
