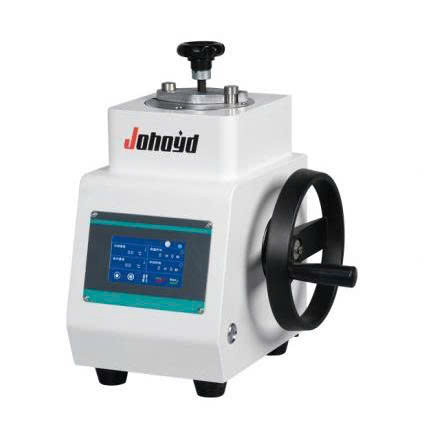

Technical parameter：
Mold specifications: Standard φ30 (optional: φ22, φ45), special customization available
Effective depth of mold: 35mm
Heating power: 500W
Force method: Manual mechanical pressurization
Temperature setting range: 0-190 degrees Celsius
Insulation setting range: 0-99 minutes
Cooling setting range: 0-99 minutes
Cooling method: Water cooling
Suitable inlay materials: Thermosetting
Inlay process formula: 100 sets
Power supply: Voltage: 220V Frequency: 50HZ
Total power: 600W
Dimensions: 270X380X450
Weight: 40KG
Main functions and features
1. The shell is made of SPCC, with a novel appearance, high-end atmosphere and class.
2. Touch screen display control, clear and intuitive interface, easy to operate.
3. Adopt precision mechanical transmission pressurization, durable.
4. The whole process is semi-automatic closed-loop control, and the touch screen operation is more intuitive and convenient.
5. With built-in cooling system, faster cooling and higher inlay efficiency.
6. A variety of mold specifications are available, and special molds can be customized according to customer needs.
7. It can be DIY operated according to customer needs, which is more flexible and convenient to use.
8. More than 100 sets of inlay process formulas can be stored, which is convenient for quick call and serial production.
9. It can meet various customized needs of customers according to customer needs, and provide all-round one-stop service.
10. The program has built-in intelligent algorithm, and time mode and temperature mode can be selected (especially for first-time users).
11. Optional chiller to realize refrigeration cycle to solve the faucet constraint. (Optional)
