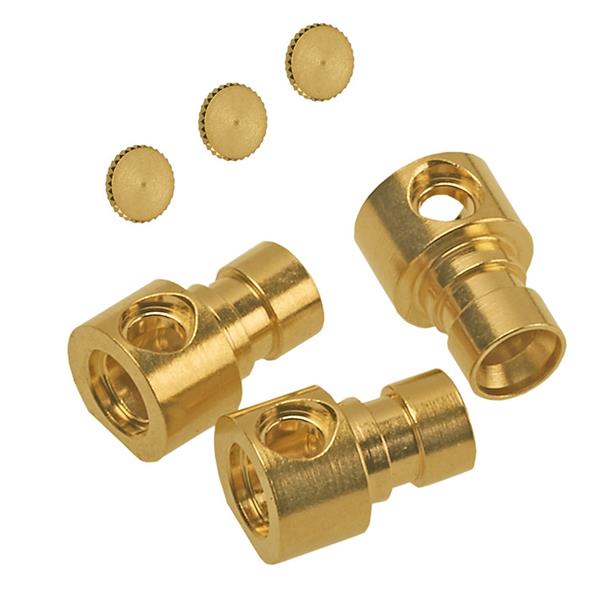

Johnson / Cinch Connectivity Solutions 125-0593-101 Connectors Male Full Detent RA Cabled Connector
Model125-0593-101
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMPM
Cable Type: 0.086 in. Semi-Rigid
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 6 g
REACH - SVHC: Details
Body Material: Beryllium Copper
Mating Cycles: 100 Cycle
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 20 GHz
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
