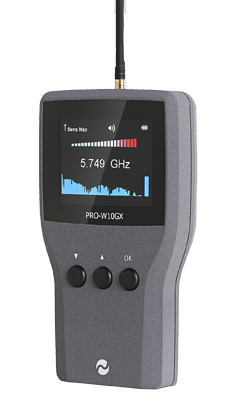

JJN Digital PRO-W10GX Wideband Digital RF Detector (1MHz~10.0 GHz)

-Typical Performance Characteristics - at 20 degrees C

-Antenna Connector: MCX Socket - 50 Ohm

-Input Frequency Range: 1MHz – 10,000 MHz (10.0 GHz)

-Sensitivity:

100MHz -49 dBm

200MHz -48 dBm

500MHz -47 dBm

1GHz -44 dBm

2GHz -50 dBm

5GHz -42 dBm

10Ghz -30 dBm

-Demodulation Sens. for 50mW Audio: -30dBm (measured at 500MHz 50% AM 1kHz)

-Audio Frequency Response: 400Hz – 5kHz +/-2dB

-Display: TFT Colour 2.5’ High Contrast Graphic Display

-Battery:

Internal 3.7V 1500 mAH Li-Ion rechargeable

Operating Duration – fully charged battery 8 hours

Charge Time – 4 hours

-Operating Temperature Range: -15 – +50 degrees C - Relative Humidity < 90%

-Dimensions: 128 mm x 74 mm x 26 mm

-Weight: 240 g – Main Unit

-Signal Processing and Control: RISC Based Microcontroller

-Memory:

1000 Event Log - non volatile

1 Hour live graph of signal data and frequency

SUPPLIED ACCESSORIES:

• Semi-Rigid Multiband Whip Antenna

• Directional High Gain Antenna

• 5V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors

• Heavy Duty Military Standard Carry Case

Datasheet
