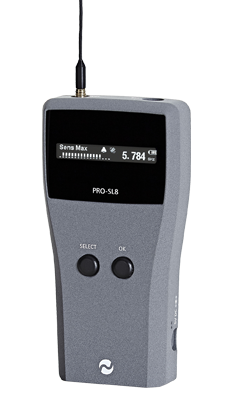

JJN Digital PRO-SL8 Pocket Digital Wideband RF Detector (0 - 8 GHz)

-Typical Performance Characteristics - at 20 degrees C

-Antenna Connector: MCX Socket - 50 Ohm

-Input Frequency Range: 1MHz – 8000MHz (8 GHz)

-Sensitivity:

100MHz -42 dBm

200MHz -42 dBm

500MHz -42 dBm

1GHz -44 dBm

2GHz -46 dBm

5GHz -42 dBm

8Ghz -40 dBm

-Frequency Counter: 100 Mhz to 6000MHz (6 GHz)

-Demodulation Sens. for 50mW Audio: -30dBm (measured at 500MHz 50% AM 1kHz)

-Audio Frequency Response: 400Hz – 5kHz +/-2dB

-Display: OLED High Contrast Graphic Display

-Battery:

Internal 3.7V Li-Ion rechargeable

Operating Duration –6 hours

Charge Time – up to 4 hours

-Operating Temperature Range: -15 – +50 degrees C - Relative Humidity < 90%

-Dimensions: 126 mm x 65 mm x 25 mm

-Weight: 200 g – Main Unit

-Signal Processing and Control: RISC Based Microcontroller

SUPPLIED ACCESSORIES:

• Flexible Multiband Whip Antenna

• 5V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors

• Earphones

• High Protection Carry Case

Datasheet
