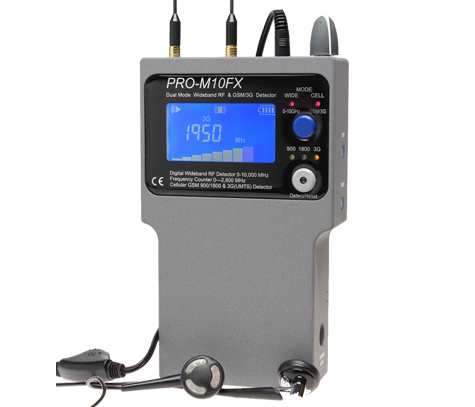

JJNdigital PRO-M10FX Dual Mode Wideband RF & GSM/3G Detector

-Typical Performance Characteristics - at 20 degrees C

-Wideband Antenna Input:

+Connector: MCX Socket - 50 Ohm

+Input Frequency Range: 1MHz – 10000MHz (10.0GHz)

+Sensitivity:

100MHz -49dBm

200MHz -47dBm

500MHz -46dBm

1GHz -41dBm

2GHz -36dBm

5GHz -18dBm

10Ghz -3dBm

+Demodulation:

Sensitivity for 50mW Audio: -30dBm (measured at 500MHz 50% AM 1kHz)

Frequency Response: 400Hz – 5kHz +/-2dB

-GSM/3G Antenna Input:

+ 2G 900MHz:

Centre Frequency: 897.50MHz

Band Width: 880 - 915MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -35dBm typ

Peak Detect Threshold: -31dBm typ

Response Time: 100ms

+ 2G 1800MHz:

Centre Frequency: 1747.50MHz

Band Width: 1710 - 1785MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -30dBm typ

Peak Detect Threshold: -27dBm typ

Response Time: 100ms

+ 3G(UMTS) 1950MHz [WCDMA]:

Centre Frequency: 1950.00MHz

Band Width: 1925 - 1975MHz

Out-of-Band Attn: > 70dB

Min. Detection Level: -75dBm

Peak Detect Threshold: -70dBm

Response Time: 100ms

SUPPLIED ACCESSORIES:

• Semi-Rigid Wideband Whip Antenna

• Semi-Rigid GSM/3G Whip Antenna

• Earphones

• 9V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors

• Protective Heavy Duty Carry Case
