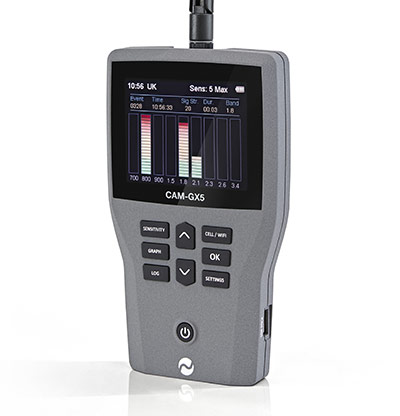

JJNdigital CAM-GX5 Cellular Activity Monitor (300 MHz to 6 GHz)

Regions covered: UK, EUROPE, ASIA, AFRICA, NORTH AMERICA, SOUTH AMERICA,

AUSTRALIA

Detection Frequency Range: International bands - (300 MHz to 6 GHz) – Maximum 10

displayable bands

Sensitivity: -70 dBm Max

Display: TFT Colour 3.5” High Contrast Graphic Display

Battery: Internal Lithium-Polymer rechargeable

Operating duration: – fully charged battery – up to 6 hours

Charging: Micro USB socket - Charge Time ~ 4 hours

Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%

Dimensions: 173 mm x 103 mm x 25 mm

Weight: Main Unit - 400g

Carry Case: Complete - 1.6 Kg

Signal Processing and Control RISC Based Microcontroller with real time clock

Event Log Maximum 4000 Events – Cellular Log

Maximum 24 Hours – 2.4/5GHz/Wi-Fi/Bluetooth Log

USB Socket: For USB Stick download only

SUPPLIED ACCESSORIES

• Adjustable hinged antenna

• 5V Micro USB Charger - 110V to 240V AC input (Auto Switching) with International Adaptors

• Heavy Duty Military Standard Carry Case

Datasheet
