JJNdigital CAM-105w Cellular Activity Monitor

- Typical Performance Characteristics - at 20 degrees C

- Detected Bands:

+ 4G 800MHz:

Band Width: 824 – 849 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -59dBm

+ 2G/4G 1800MHz:

Band Width: 1710 - 1785MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -52dBm

+ 4G 2600MHz:

Band Width: 2500 – 2570 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -48dBm

+ 2G 900MHz:

Band Width: 880 - 915MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -52dBm

+ 3G (UMTS) (WCDMA) 2100 MHz:

Band Width: 1925 - 1975MHz

Out-of-Band Attn: > 70dB

Min. Detection Level: -76dBm

+ WIFI/BLUETOOTH 2400MHz:

Band Width: 2400 – 2485 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -56dBm

-Display: TFT Colour 3.5’ High Contrast Graphic Display

-Battery:

Internal 3.7V 2400 mAH Li-Ion rechargeable

Operating Duration – fully charged battery 8 hours

Charge Time – 4 hours

-Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%

-Dimensions: 173mm x 103mm x 25mm

-Weight: 400 g – Main Unit

-Signal Processing and Control: RISC Based Microcontroller with real time clock

-Event Log:

Maximum 4000 Events – Cellular Log

Maximum 24 Hours – 2.4GHz/Wifi/Bluetooth Log

-USB Socket: For USB Stick download only

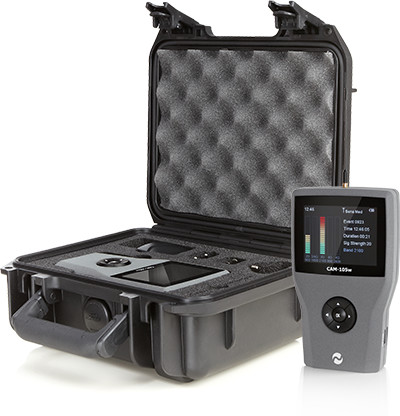

SUPPLIED ACCESSORIES:

• Semi-Rigid Multiband Whip Antenna

• 5V DC Charger - 110V to 240V AC input (Auto Switching) with International Adaptors

• Heavy Duty Military Standard Carry Case

Datasheet
