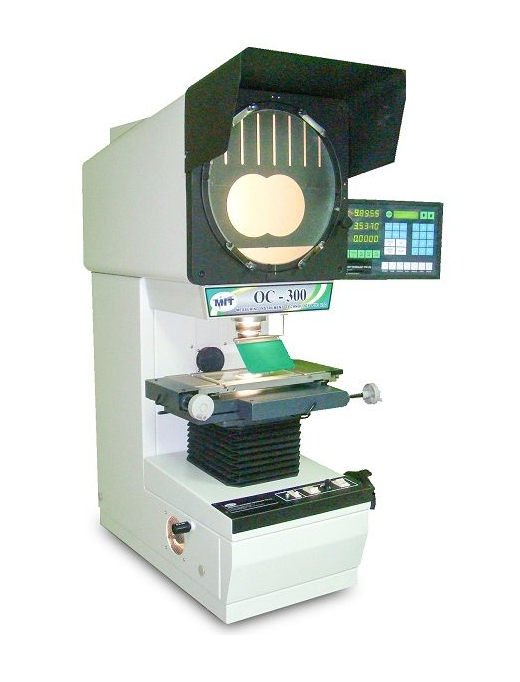

JISC OC-300-150 Optical Comparator (4 + (L/25) microns, 0~360 Degree)

Screen Diameter: 312mm used range > 300mm (with the meter line)

Screen Rotary Range: 0~360 Degree

Standard Lens Magnification: 10X

Optional Lens: 20X, 50X & 100X

Accuracy: 4 + (L/25) microns

Linear Scale Resolution: 0.5 micron

Work Stage Table Top Area: 340 x 152mm

Measuring Range X-Y Axis: 150 x 50mm

Maximum Workpiece Height: 90mm

Measuring System: Built in Linear Scale

Digital Readout: DC-3000 Multi-Function Data Processing System with Geometric Function

Illumination System: 24V 150W Halogen Bulb

Power Supply: Single phase AC 110 / 220V, 50~60Hz, 400W

Dimension: W770 x D550 x H1100

Weight: Approx. 140 kg

Optional Accessories: Rotary Table, Pair of Vee Blocks, Vertical Work Piece Holder, Overlay Chart & Serial Printer

CHARACTERISTICS

Our Series of Projector are photoelectric measuring system of High Precision and Accuracy The image on the screen is upright, comes with DC-3000 Geometrical Function DRO Foot Switch is also included to ease your measurements.
