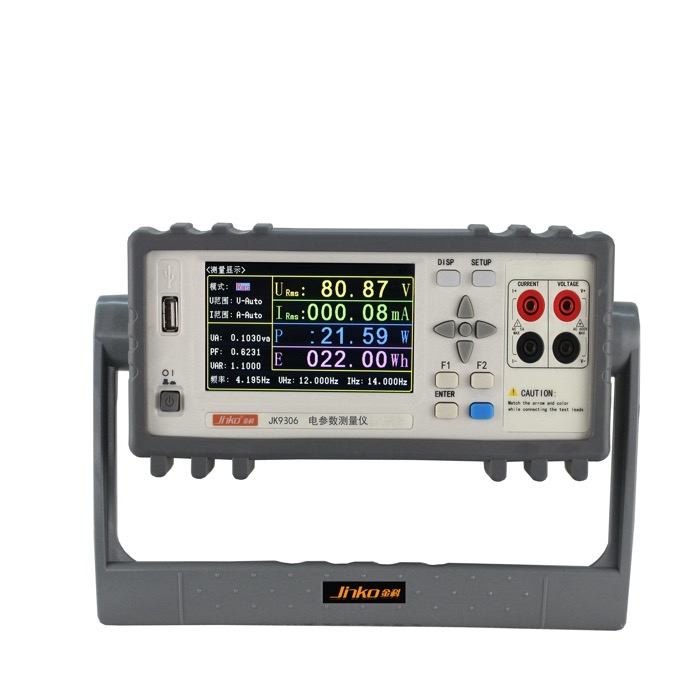

JINKO JK9306 Multi-channel Digital Power Meter (0.2mA - 200mA, 0.2A - 20A, 1 CH)
Manufacturer: JINKO Model: JK9306 - Contact
Wiring: Single-phase
Input Channel: Single Channel
Display: 4.3 inch TFT color screen
Test Parameters: Voltage (V), Current (A), Active Power (W), Power Factor (PF), Frequency (Hz), Electric Energy Accumulation
Measurement Method: Trms
Voltage Range: 5-600V AC (automatic switching)
Peak Voltage: 700V AC
Overload Capacity: 1.2 times overload for a long time
Minimum Test Voltage: 5V AC
Resolution (Voltage): 0.01V
Voltage Input: AC
Current Range: 0.2mA - 200mA, 0.2A - 20A (automatic switching: Up cut 200mA / Down cut 150mA)
Resolution (Current): 0.01mA (0.2mA - 200mA), 0.01A (0.2A - 20A)
Resolution (Power): 0.01W
Resolution (Power Factor): 0.001
Current Input: AC
Power Range: 0.01W - 3000W, 0.1W - 12kW
Power Factor Range: 0.001 - 1.000
Power Factor Calculation: Watt (W) ÷ [Voltage (V) × Current (A)] = Power Factor (PF)
PF > 0.5 Accuracy: ± (0.1% reading + 0.1% range)
PF ≤ 0.5 Accuracy: ± (0.2% reading + 0.2% range)
Frequency Range: 45-65Hz
Measurement Accuracy (Voltage): ± (0.3% reading + 0.05% range)
Measurement Accuracy (Current): ± (0.4% reading + 0.05% range)
Measurement Speed: 5 times/second
Input Impedance: ≥1MΩ (all voltage ranges)
Communication Interface: RS-232C, USB Device
Data Storage: USB HOST
Limit Alarm: Yes
Input Voltage Range: 110V/220V AC, 50/60Hz
Size (Instrument): 355mm × 225mm × 112mm (L × W × H)
Size (Hole): 225mm × 99mm (W × H)
Weight: ~1.7kg
JK9306 series electrical parameter test ceremony The latest generation of intelligent multi-channel power test products developed by our company adopt the latest measurement principles, super anti-interference ability to ensure the accuracy and consistency of the test, 4.3-inch high-definition TFT color screen display parameters are comprehensive and simple , Rich in functions, highly humanized. Products are widely used in many fields such as household appliances energy consumption test, lighting appliances / LED lamps power consumption test, motor and motor test, charger and switching power supply test.
Features:
■ High-definition 4.3-inch TFT color display, displaying all channel data at the same time
■ Single-channel dual-channel or four-channel simultaneous testing, greatly improving production efficiency
■ The minimum test current is 0.05 mA, and the power is 0.001W, which is suitable for small power tests such as standby power consumption.
■ All measurements are true effective value Trms
■ Automatic range, accuracy: 0.5 level
■ Simple and quick setting upper and lower limit alarm function, support data lock
■ Super anti-interference ability
■ Standard RS232C and USB Device communication interface software
