Number of analog input channels: 10ch
External input: Input (*5)
Input (*2): Pulse input: 2ch
Input (*1): High level test low level stop
Input (*2): Alarm output: 1ch, Voltage output 5V 1ch (12V, 24V Remarks before leaving the factory)
Sampling period: 50ms ~ 1h (Single channel highest 5ms)
Time scale of waveform display: 1s ~ 24h/scale
Trigger function, alarm judgment:
Trigger action: High level test low level stop
Repetition of action: OFF ON (Automatic preparation)
Condition trigger: High level
Alarm output: Output signal at alarm value
Pulse input: Cumulative mode, Cumulative number of pulses after starting measurement: 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Number of pulses/full scale)
Calculation function:
In-channel calculation: Addition, subtraction, multiplication, and division of analog signals
Statistical calculation: Average, peak, maximum, minimum, actual value
PCI/F: USB2.0 (full speed), wireless LAN (use condition)
Storage device:
Built-in: 32GB Flash memory
External: U disk (direct storage, transfer)
Save content: Measurement conversion data (CSV, TXT)
Collection mode: Circular recording function: Save the latest data (number of recorded data: 1000 ~ 2000000)
Data playback: JK350 collected data (BIN format)
Unit conversion function: The measured value can be converted between specified units
Monitor:
Size: 5.6 inch TFT color LCD (WQVGA: resolution 640x480)
Language: EN, CN
Screen display (*9): Numerical value and YT waveform, only waveform, numerical value, and statistical calculation
Use environment: 0 ~ 45℃, 5 ~ 85% RH (No condensation), 0 ~ 40℃ during battery drive / 15 ~ 35℃ during charging
Rated power:
AC adaptor: AC100V ~ 240V/50 ~ 60Hz (1 standard power adapter)
DC Power drive: DC8.5V ~ 24V, Another DC drive line is required
Battery: Dry battery driver (battery option C-800): 8.4V DC, 25000mAh
Power consumption (*10): 36VA or less
Dimension [H X W X D]: Size: 229 (H) * 148 (W) * 46 (D) (mm) (not including projection)
Weight: (about) 1280g
Product Description:
● Insulation between channels

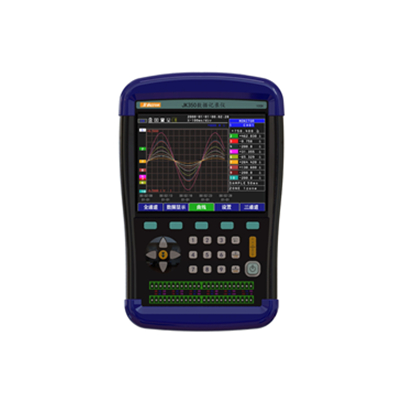

● Multi-channel data recorder with universal signal input that can be used independently
● Support all types applied flexible signal input system
● Support remote monitoring and wireless LAN function for data logging
● 32G SD card storage capacity
● Support 5ms interval sampling at maximum
● Thermocouple measurement accuracy increased by 50%
● Resolution sample signal up to 1µV
● 5.6 inches (640x480 dots) TFT LCD display with a wider viewing angle
