Test Voltage: 0 — 200 V, 0 — 500 V
Voltage Accuracy: ±1% Set value ±1 dgt
Range: 10 nA — 19.99 mA, Resolving power: 1 nA
Current Accuracy: ±2% reading ±2 dgt
Control Mode: Microprocessor
Display Mode: Digital display, Voltage: 3, Current: 3 1/2
Maximum Charge Current: 200 (1±20%) mA
Charging Time: 0 — 99.9 s, Accuracy: 2%T set ±0.5s
Limit Setting: 0 — 99×10⁹ (nA)
Sorting: Pass, Fail, Fail message
General Technical Index:
Working Temperature, Humidity: 0℃ — 40℃, ≤90% RH
Power Requirements: 198 V — 242 V AC, 47.5 Hz — 52.5 Hz
Power Waste: ≤50 VA
Size (W×H×D): 350 mm × 135 mm × 357 mm

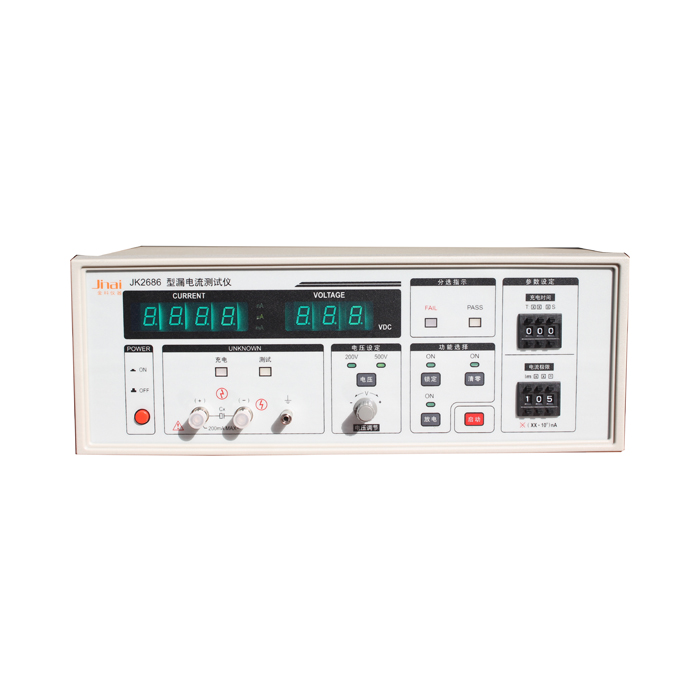

JK2686 electrolytic capacitor leakage current tester is a kind of measuring instrument which is based on the micro processing technology. The test voltage can be adjusted continuously, the voltage three digit display, the current three - and a half digital display, charging - test automatic conversion, Maximum test voltage 500V maximum test current 20mA, maximum charging current 200mA, maximum charging time of 99.9 seconds. The instrument has the characteristics of current limit indication, fast test speed, easy operation, safety and reliability. Applicable to all kinds of electrolytic capacitor production line quality certificate, incoming inspection requirements.
