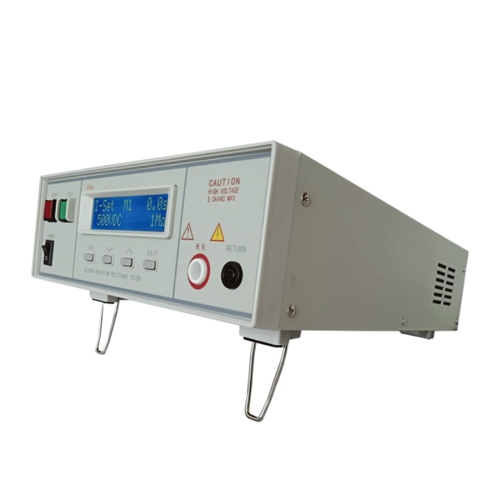

JINKO JK2683 Leakage Current And Insulation Resistance Tester (1na~20ma, 1kω~1000gω)

Basic Accuracy: 1%

Output Voltage: Numerical Control: 10v～1000vdc

Measurement Range:

Current: 1na~20ma

Resistance: 1kω~1000gω (2%+2 dgt.)

Reading: 9999

Range: Automatic

Charging Current: 200ma (Max)

Measurement Speed: 8meas/Sec

Display Result: Direct Reading, Resistance, Peak, and the Result of the Separation

Correction: Open Circuit Remove One Zero

Charging Timer: 999.9s

Comparator: 5 Set Of Records, Gd/Ng

Fail-On: Gd, Ng

Interface: Rs-232 Handler

Power Requirement:

Voltage: 198vac～240vac

Frequency: 50hz

Power: Maximum 50va

Dimensions And Weight:

External Dimension (mm): 310 (W) x 110 (H) x 390 (D)

Inside Dimension: 280 (W) x 88 (H) x 370 (D)

Weight: 5kg

Accessory: Test Clips, Test Fixture

Manual

Datasheet

JK2683 leakage current and the insulation resistance is to use high performance microprocessor control capacitor leakage current/insulation resistance meter. CNC test voltage: 10 v ~ 1000 v, 7 range test, the leakage current accuracy increased to 1%, it can measure 1 na ~ 20 ma current, the insulation resistance of the largest 1000 g Ω biggest display digits number 9999. High-speed test provides the best solutions for automated production assembly. Instrument has a sorting function, sorting ring set, It also can be equipped with Handler interface which is applied to the automatic sorting system to accomplish automatic assembly line testing. By the built-in RS232C interface, can be used for remote control and data acquisition and analysis.

Features

●A variety of parameters shows at the same time

●Peak-value-holding function

●Full range open reset function

●The comparator output：Through RS232C output or Handler interface separation results.

●Fail-on：can set up fail-on switch

●GD/NG fail-on和trigger mode：The external trigger, manual triggering, internal trigger and remote trigger

●Optional foot switch
