Effective resolution: 16 bits
Channel: 8 differential
Channel: Independent configuration 8
Input signal: Thermocouple K, E, B, N, T, E, S, J, WRE5-26, WRE3-25; Thermal resistance: Pt100, Cu50; Current 4-20mA, 0-10mA, voltage 0-5V, 0-10V

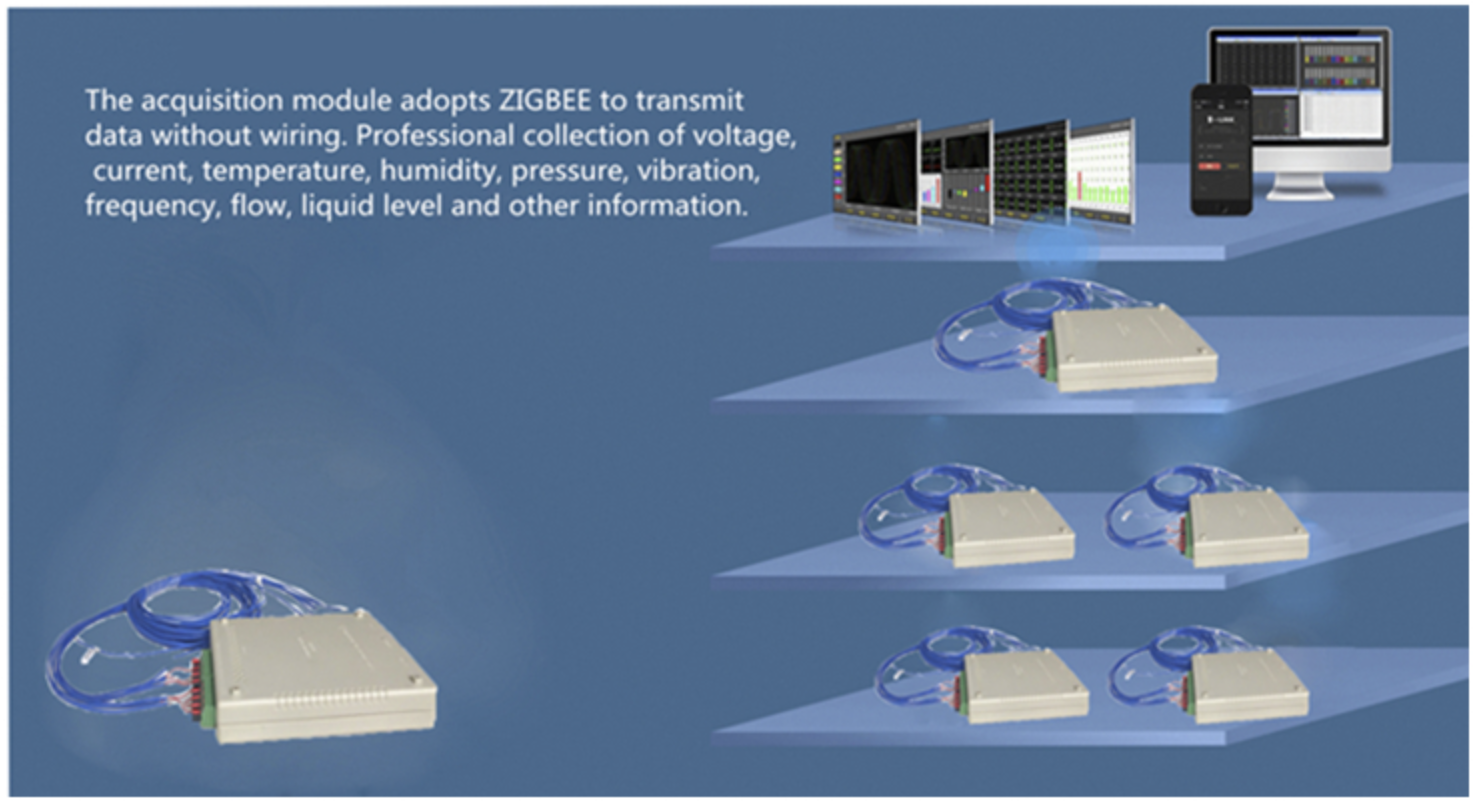

Communication method: ZigBee wireless
Communication distance: 500m (unobstructed)
Communication frequency band: 2.5GHz
Network topology: Point-to-point, point-to-multipoint, peer-to-peer, and Mesh networks
Measurement accuracy: ±0.2% F●S
Zero drift: ±3µV/℃
Sampling period: 1-19999s set independently
Isolation voltage: Maximum withstand voltage 300Vdc
Full-scale drift: ±25ppm/℃; 92dB (minimum CMR @ 50/60Hz)
Recording mode: PC software recording
Baud rate: 1200, 2400, 4800, 9600, 38400, 57600, 115200bps
Power supply: +5/DC or 24V/DC
Power consumption: Less than 0.9W
Bandwidth: 13.1Hz @ 50Hz, 15.72Hz @ 60Hz
Weight: 0.185kg
Body Material: Aluminum Oxide
Dimensions: 14.5cm x 10cm x 1.5cm (length x width x height)
Working temperature: -10℃ ~ +70℃
Operating humidity: 5~95% without condensation
